Architecture documentation for the CLIE CLI framework.

Overview

CLIE (CLI Extender) provides a container-based CLI framework for modular, extensible command-line tools.

The architecture focuses on:

  • Docker-based execution - Isolated, reproducible environments
  • Extension system - Pluggable command collections via containers
  • Git-aware workflows - Automatic repository detection and mounting
  • Cross-platform support - Windows, macOS, Linux compatibility

Ecosystem Overview

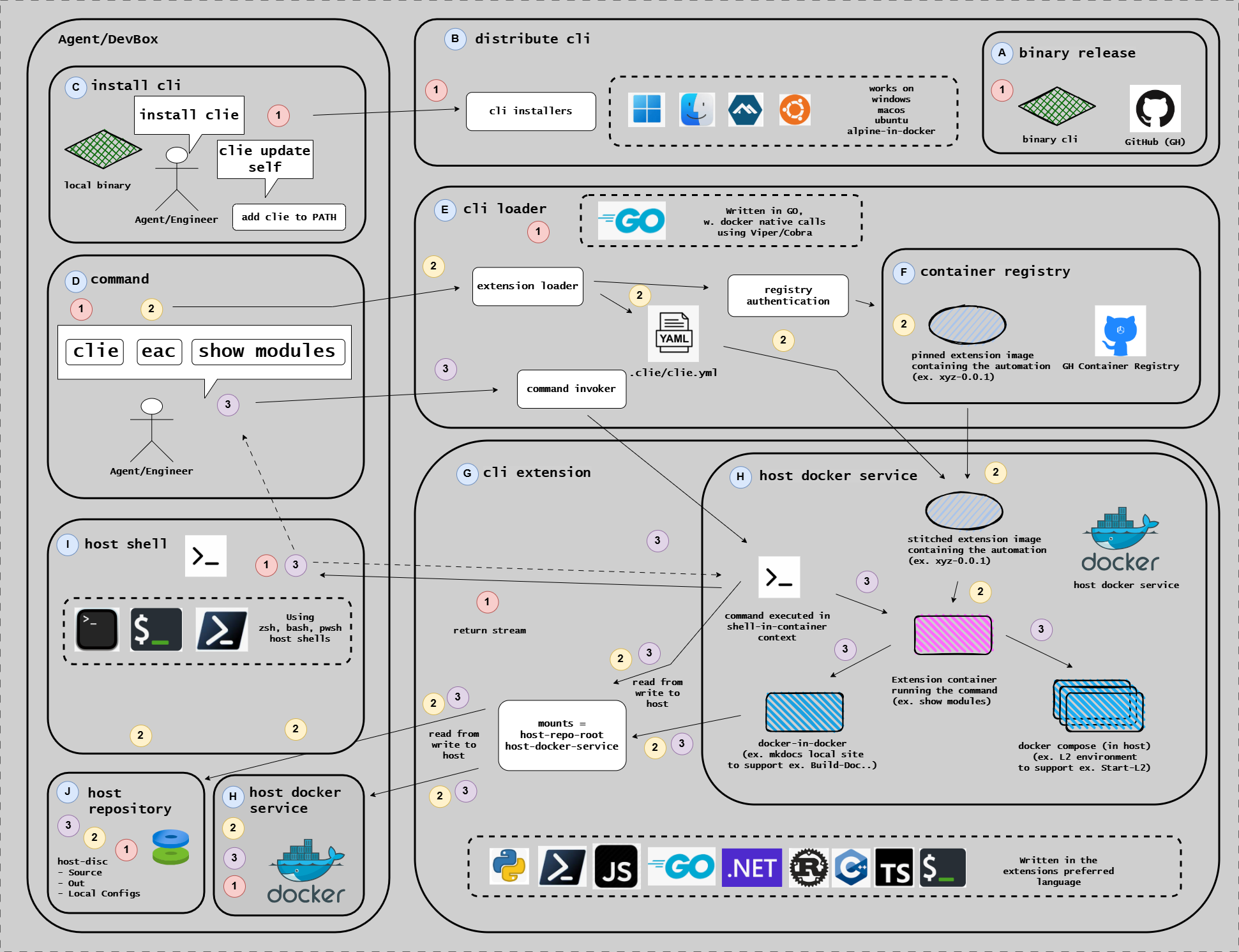

CLIE CLI Ecosystem Overview

Core Design Principles

1. Container Isolation

Extensions execute in isolated Docker containers, providing:

  • Reproducible builds across environments
  • Dependency isolation (no global installs)
  • Consistent behavior (Linux runtime for all platforms)
  • Security boundaries between extensions

2. Repository-Centric

CLIE automatically detects git repositories and:

  • Mounts repository root as /workspace
  • Preserves working directory context
  • Enables git-based workflows (change detection, hooks)
  • Respects .gitignore for artifacts

3. Extension Modularity

Extensions are self-contained Docker images:

  • Single binary entrypoint
  • Declarative configuration (.clie/clie.yml)
  • Independent versioning and releases
  • Composable (extensions can invoke other extensions)

Architecture Documentation

Document Description
CLIE CLI Module Detailed module architecture with C4 diagrams

Command Discovery

Extensions register commands dynamically:

  1. CLIE detects extension name from first argument (clie eac ...)
  2. Looks up extension in .clie/clie.yml
  3. Passes remaining arguments to extension (build ...)
  4. Extension handles subcommand routing internally

No central registry needed - extensions are self-documenting.

Performance Optimizations

Image Caching

  • Docker layer cache for fast rebuilds
  • Multi-stage builds for smaller images
  • Base image reuse across extensions

Volume Mounting

  • Bind mounts (not copies) for instant access
  • Read-only mounts for immutable data
  • Cached mounts for dependencies

Container Reuse (Future)

Planned: Long-running containers for faster execution

extensions:
  - name: eac
    keep_alive: true # Don't remove after command
    idle_timeout: 5m # Remove after 5 min idle

Security Model

Isolation

  • Extensions run as non-root user in container
  • Limited host access (only mounted volumes)
  • Network isolation (no internet by default)

Trust Model

Extensions execute arbitrary code - users must trust extension authors.

Mitigations:

  • Extensions are Docker images (auditable)
  • Local build option (load_local: true)
  • No automatic updates (explicit version pins)

Error Handling

CLIE uses exit codes for error signaling:

Exit Code Meaning
0 Success
1 General error
2 Configuration error
3 Docker error
125+ Container exit code

Errors propagate from extension to CLI to user.

Comparison with Alternatives

Feature CLIE Make Devbox Task
Container isolation ✅ ❌ ✅ ❌
Cross-platform ✅ ⚠️ ✅ ✅
Extension system ✅ ❌ ⚠️ ❌
Git integration ✅ ❌ ❌ ❌
Reproducible builds ✅ ⚠️ ✅ ⚠️

CLIE sweet spot: Teams needing reproducible, containerized workflows with modular command collections.
