Example Mapping

Workshop technique for discovering requirements through collaborative conversation in 15-25 minutes.

What is Example Mapping?

Example Mapping is a time-boxed collaborative workshop that uses colored index cards to discover acceptance criteria and concrete examples before development begins.

Core purpose: Answers three questions:

1. What does this feature need to do? (Acceptance criteria)
2. What are concrete examples? (Test scenarios)
3. What don't we know yet? (Questions and risks)

Prerequisites: Establish Ubiquitous Language through Event Storming first. See: Event Storming and Ubiquitous Language

Why use it? Discovers requirements early (less than 25 min conversation vs days/weeks of coding), produces concrete measurable criteria (not subjective), creates fast feedback loop, builds collaborative understanding.

Quick Start

Running Your First Example Mapping Session:

1. Prepare (10 min): Get colored index cards (Yellow, Blue, Green, Pink) and invite Product Owner + Developer + Tester
2. Place Yellow Card (2 min): Write user story "As a [role] I want [capability] So that [value]"
3. Generate Blue Cards (10 min): Brainstorm 2-4 acceptance criteria (measurable rules)
4. Add Green Cards (10 min): Write 2-4 concrete examples per Blue Card
5. Capture Pink Cards (ongoing): Write down questions, DON'T solve them during workshop
6. Assess Readiness (3 min): <4 Blue, <4 Green each, no blocking Pink = Ready to implement

Time limit: 25 minutes maximum. If longer, split the feature.

See Workshop Process for detailed facilitation guide.

The Four Card Colors

Card Guidelines

Yellow (User Story):

As a [role]
I want [capability]
So that [business value]

Blue (Rules): Measurable business rules

• ✅ "Creates 3 directories (src/, tests/, docs/)"
• ❌ "Interface is user-friendly" (not measurable)

Green (Examples): [Context] → [Action] → [Result]

• ✅ "Empty folder → init → creates src/, tests/, docs/"
• ❌ "It creates directories" (too abstract)

Pink (Questions): Capture without solving during workshop

• "What if r2r.yaml already exists?"
• "Should we support a --force flag?"

Workshop Process

Participants: Product Owner + Engineer + Tester Duration: 15-25 minutes (strictly time-boxed)

Steps

1. Place Yellow Card (2 min) - Write user story
2. Generate Blue Cards (8-12 min) - Brainstorm 2-6 acceptance criteria
3. Create Green Cards (5-10 min) - Write 2-4 concrete examples per Blue Card
4. Capture Pink Cards (ongoing) - Write down questions, don't solve them
5. Assess Readiness (2 min) - Ready to implement, too large, or too uncertain?

Readiness Assessment

✅ Ready: <4 Blue Cards, <4 Green Cards each, no Pink cards you can't answer within a day ⚠️ Too Large: >4 Blue Cards or >25 minutes → Split into multiple features ❌ Too Uncertain: Blocking Pink Cards → Research spike, then re-run

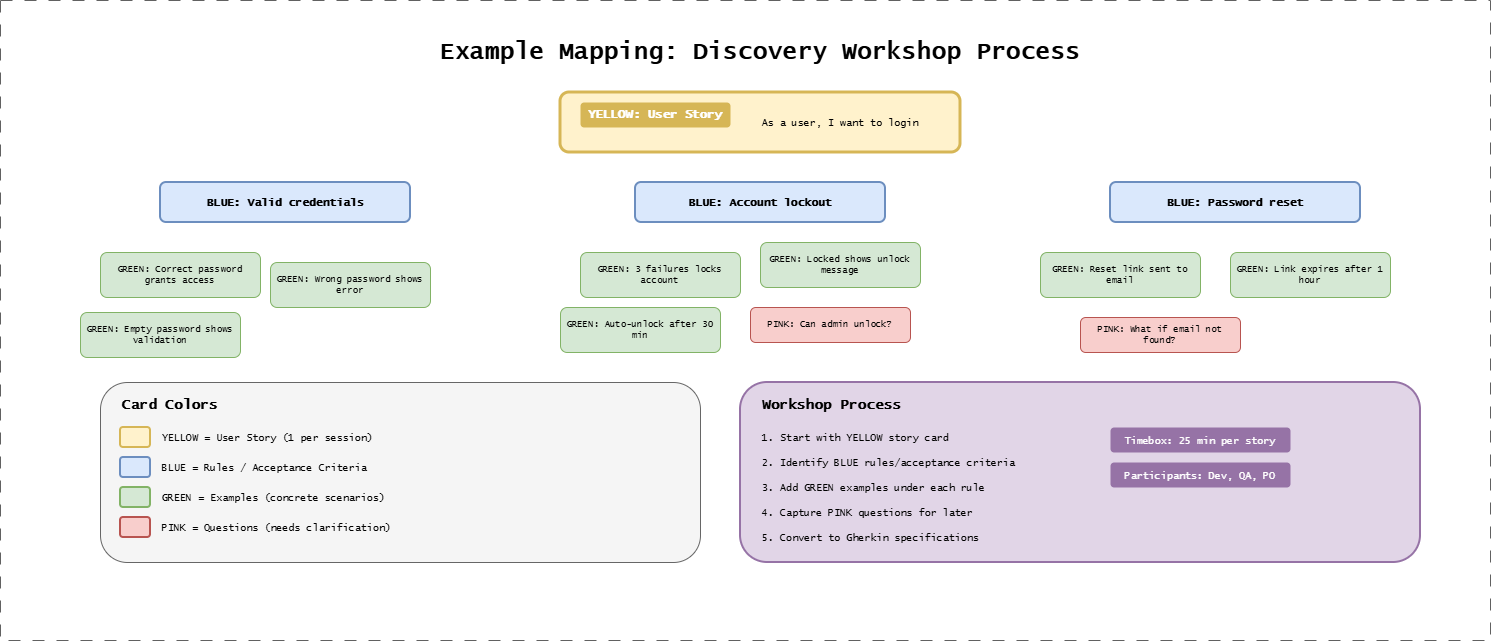

Visual Layout

Workshop tips: Use physical cards on table (or Miro/Mural for virtual), everyone can add cards, take photos for documentation.

Facilitation Guide

Session Setup

Time: 25 minutes - strictly time-boxed

Participants:

• Product Owner (business perspective)
• Developer (technical perspective)
• Tester (quality perspective)

Materials:

• Yellow index cards (user stories)
• Blue index cards (rules/acceptance criteria)
• Green index cards (examples/scenarios)
• Red/Pink index cards (questions/unknowns)
• Timer (visible to all)

Detailed Steps

Step 1: Present the Story (2 minutes)

Write the user story on a Yellow card:

As a [role]
I want to [capability]
So that [business value]

Place at top of workspace.

Step 2: Discover Rules (8 minutes)

Ask: "What acceptance criteria must be satisfied?"

Write each on a Blue card:

• "Must validate email format"
• "Must send verification email"
• "Must prevent duplicate accounts"

Place Blue cards in a row below Yellow card.

Step 3: Add Examples (12 minutes)

For each Blue card, ask: "Can you give me an example?"

Write each on a Green card:

• "User enters valid email, receives confirmation"
• "User enters invalid format, sees error"
• "User enters existing email, directed to login"

Place Green cards below their Blue card.

Step 4: Capture Questions (ongoing)

When you encounter unknowns, write on Red/Pink card:

• "What happens if email service is down?"
• "How long is verification link valid?"

Place to the side. Red cards must be resolved before implementation.

Step 5: Assess Readiness (3 minutes)

Ready to implement if:

• 1 Yellow card (story)
• ≤4 Blue cards (acceptance criteria)
• ≤4 Green cards per Blue card
• No blocking Red cards

Not ready if:

• Too many Red cards → stop and research
• Too many Blue cards → story too big, split it

Session Signals

Stop and Split:

• More than 4 Blue cards
• Green cards are hard to think of
• Lots of disagreement

Stop and Research:

• Many Red cards accumulating
• Fundamental questions unresolved
• Scope unclear

Ready to Go:

• Clear acceptance criteria
• Concrete examples
• Questions resolved

Virtual Sessions

For remote teams:

• Use Miro, Mural, or FigJam
• Color-coded sticky notes
• Screen share for all participants
• Timebox strictly (use visible timer)

From Cards to Gherkin

Example Conversion

Workshop Cards:

🟡 As an engineer, I want to initialize a CLI project with one command
🔵 [BLUE-1] Creates project directory structure
🟢 [GREEN-1a] Empty folder → init → creates src/, tests/, docs/
🟢 [GREEN-1b] Existing project → init → error "already initialized"

Resulting Gherkin (specs/cli/init-project/specification.feature):

Feature: cli_init-project

  As an engineer
  I want to initialize a CLI project with one command
  So that I can quickly start development

  Rule: Creates project directory structure

    @ov
    Scenario: Initialize in empty directory creates structure
      Given I am in an empty folder
      When I run "r2r init my-project"
      Then a directory named "my-project/src/" should exist
      And a directory named "my-project/tests/" should exist
      And a directory named "my-project/docs/" should exist

    @ov
    Scenario: Initialize in existing project shows error
      Given I am in a directory with "r2r.yaml"
      When I run "r2r init"
      Then the command should fail
      And stderr should contain "already initialized"

Translation Guide

Follow these steps to convert Example Mapping cards to Gherkin:

Step 1: Yellow Card → Feature

Yellow Card:

As a developer
I want to initialize a project
So that I can start coding quickly

Gherkin:

Feature: cli_init-project

  As a developer
  I want to initialize a project
  So that I can start coding quickly

Step 2: Blue Cards → Rules

Blue Cards:

• "Creates project structure"
• "Configuration has defaults"
• "Prevents overwriting existing projects"

Gherkin:

Rule: Creates project directory structure

Rule: Configuration file contains default values

Rule: Existing projects are not overwritten

Step 3: Green Cards → Scenarios

Green Cards under "Creates project structure":

• "Empty directory → creates files"
• "With subdirectory → creates in current"

Gherkin:

Rule: Creates project directory structure

  @ov @ac1
  Scenario: Initialize in empty directory
    Given I am in an empty folder
    When I run "r2r init"
    Then a file named "r2r.yaml" should be created
    And a directory named "specs/" should be created

  @ov @ac1
  Scenario: Initialize with existing subdirectories
    Given I am in a directory with "src/"
    When I run "r2r init"
    Then "r2r.yaml" should be created in current directory
    And "src/" should remain unchanged

Step 4: Red Cards → Actions

Red Cards:

• "What if no write permission?"
• "What about .gitignore?"

Actions:

1. Resolve before implementation (ask product owner)
2. Add as new scenarios once resolved
3. Or document in issues.md if deferred

Translation Checklist

• [ ] One Feature per file
• [ ] Feature name follows module_feature-name format
• [ ] User story in Feature description
• [ ] One Rule per Blue card
• [ ] Scenarios under their Rule
• [ ] All scenarios have @ov (or other verification tag)
• [ ] All scenarios have @ac<n> linking to Rule
• [ ] Red card questions resolved or documented

After the Workshop

Immediate (Same Day)

1. Write specification.feature - Convert cards to Gherkin while context is fresh
2. Share for review - Product Owner, Engineers, QA validate
3. Document Pink Cards - Create issues.md with ownership and deadlines

Short-term (1-2 Days)

1. Incorporate feedback - Refine ambiguous steps, add missing criteria
2. Resolve Pink Cards - Research, mini-sessions, spike implementations
3. Confirm scope - All three amigos agree before implementation starts

During Implementation (1 Week)

1. Discover edge cases - Unit tests reveals boundary conditions → Add scenarios
2. Refine language - Vague steps become precise → Update specification
3. Keep synchronized - Commit spec changes with code changes

After Implementation

1. Retrospective review - Did spec match what was built?
2. Refactor for clarity - Consolidate duplicates, simplify verbose scenarios
3. Document lessons learned - Improve next workshop

Remember: Specifications are living documents. They evolve through discovery, feedback, refinement, and iteration. See: Review and Iterate

Best Practices

Do's ✅

• Time-box strictly (25 min max)
• Use domain language from Event Storming
• Be specific: "Creates 3 directories" not "Creates directories"
• Include error cases (at least one per Blue Card)
• Set Pink Cards aside (don't solve during workshop)
• Invite all three amigos (Product + Dev + Test)

Don'ts ❌

• Don't make Blue Cards subjective → Use measurable criteria
• Don't use abstract Green Cards → Use specific input/output
• Don't debate Pink Cards → Write down, resolve later
• Don't exceed 6 Blue Cards → Split the feature
• Don't skip edge cases → Error scenarios matter

Common Anti-Patterns

❌ Solution in User Story: "I want a YAML config file" → ✅ "I want to configure my CLI tool" ❌ Unmeasurable criteria: "Performance is good" → ✅ "Completes in <2 seconds" ❌ Too many Green Cards: 10+ examples for one Blue Card → ✅ Split into multiple Blue Cards ❌ Implementation details: "Parser loads YAML → deserializes" → ✅ "Valid YAML → init succeeds"

When to Split Features

Split when:

• >6 Blue Cards - Group related criteria into separate features
• Workshop >25 minutes - Prioritize and split
• Every Blue Card has 6+ Green Cards - Keep MVP, defer edge cases
