Three-Layer Testing Approach

Home › Explanation › Specifications › Concepts › Three Layer Approach

How Rules, Scenarios, and unit tests work together to deliver quality software.

Overview

This project uses three complementary testing methodologies:

  • Rules - Business Acceptance Criteria, policies, process rules
  • Scenarios - Exemplify and shape how rules are applied, creates the acceptance tests
  • Unit tests Low level component, function, class, behaviour

Each layer serves a distinct purpose, uses different tools, and addresses different stakeholders' needs.

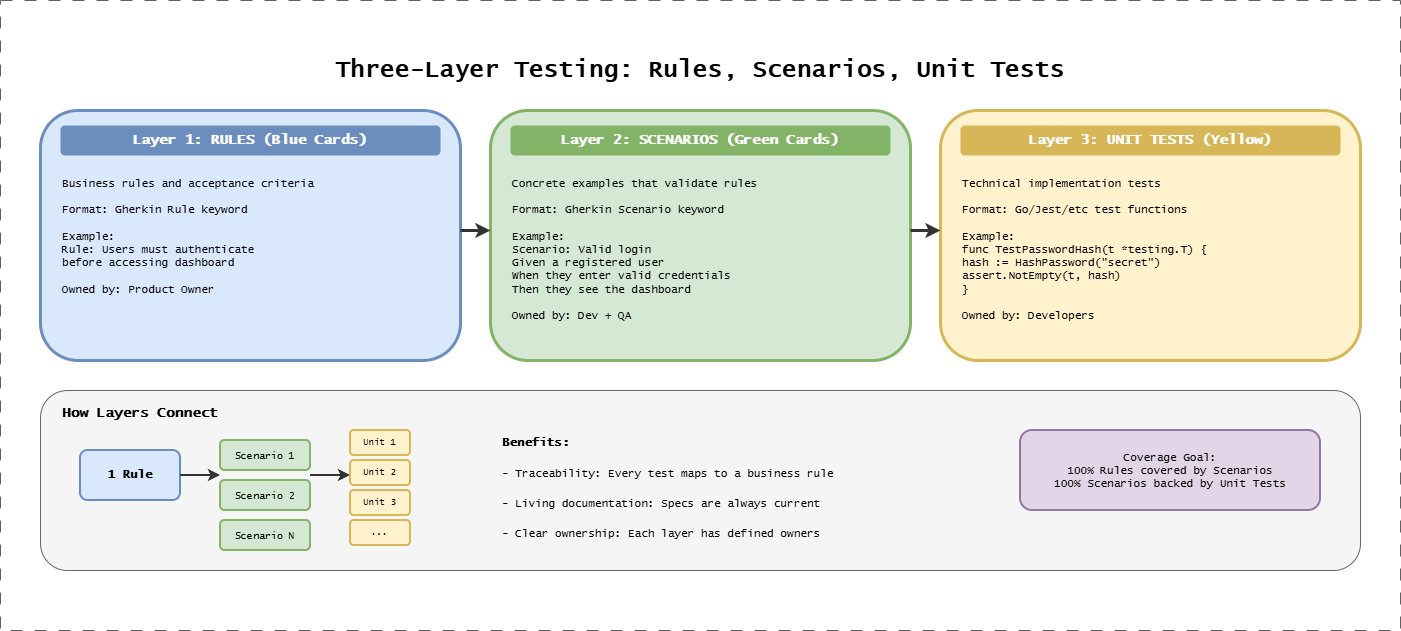

The Three Layers

Layer Question Stakeholders Format Representation Location
Rules "What business value?" Product Owner, Business Gherkin Rule: blocks Specifications
Scenarios "How does user interact?" QA, Developers, Product Gherkin Scenario: under Rules Specifications + Test implementations
Unit tests "Does code work?" Developers Test framework Test functions Test files

Implementation: Uses BDD frameworks for Gherkin scenarios and native test frameworks for unit tests.

Common framework combinations:

  • Go: Godog + go test
  • Python: behave/pytest-bdd + pytest
  • Java: Cucumber + JUnit
  • TypeScript: Cucumber-js + Jest
  • Ruby: Cucumber + RSpec

See your language implementation guide for setup and configuration.

Layer 1: Rules (Acceptance Criteria)

Purpose: Define business requirements before development

Format: Rule: blocks in Gherkin

@cli @critical
Feature: cli_init-project

  As a developer
  I want to initialize a CLI project
  So that I can quickly start development

  Rule: Creates project directory structure

  Rule: Generates valid configuration file

  Rule: Command completes in under 2 seconds

Origin: Blue cards from Example Mapping Location: specs/<module>/<feature>/specification.feature

Layer 2: Scenarios

Purpose: Specify observable behavior through concrete examples

Format: Scenario: blocks nested under Rule: blocks

Rule: Creates project directory structure

  @ov
  Scenario: Initialize in empty directory
    Given I am in an empty folder
    When I run "r2r init"
    Then a file named "r2r.yaml" should be created
    And a directory named "src/" should exist

  @ov
  Scenario: Initialize in existing project
    Given I am in a directory with "r2r.yaml"
    When I run "r2r init"
    Then the command should fail
    And stderr should contain "already initialized"

Origin: Green cards from Example Mapping Specification: Written in specification files Implementation: Test implementation files (step definitions)

Implementation: Step definitions are organized in a dedicated test directory within each module. Location and naming conventions vary by language. See your implementation guide for details.

Layer 3: Unit Tests

Purpose: Ensure code correctness through systematic test-first development

Format: Unit test functions in test files

Tool: Test framework (language-specific)

Implementation: Unit tests are written using language-native test frameworks. Location and naming conventions vary by language. See your implementation guide for details.

Canon TDD Workflow

Kent Beck's Canon TDD provides a specific five-step workflow for test-driven development:

Mermaid diagram

We often discover new tests while we implement a test, add them to the test list.

Based on Canon TDD by Kent Beck, flowchart concept by Vic Wu

The Five Steps:

  1. List - Behavioral analysis: Identify all expected behavioral variants and edge cases through systematic analysis
  2. Test - Write one automated test with setup, invocation, and assertions (Red)
  3. Pass - Modify code to make the test pass without shortcuts (Green)
  4. Refactor - Optionally improve implementation design after test passes
  5. Repeat - Continue until the test list is empty

Key Principle: Red focuses on interface design (how behavior is invoked), from the caller. Green focuses on implementation design (internal mechanics). Refactoring focuses on finding a design that allows us to continue.

Red-Green-Refactor Cycle:

  • 🔴 Red: Write failing test (from list)
  • 🟢 Green: Implement minimum code to pass
  • 🔵 Refactor: Improve design if needed
  • 🔁 Repeat: Next test from list

Example (conceptual):

Feature: cli_init-project

Step 1: List behavioral variants

  • Create config in empty directory (success)
  • Create config with custom path (success)
  • Create config when file exists (error)
  • Create config in read-only directory (error)

Steps 2-5: For each variant

  1. Write test - Create test that calls the function and asserts expected outcome
  2. Arrange: Set up test conditions (empty directory, existing file, etc.)
  3. Act: Invoke the function being tested
  4. Assert: Verify the expected result or error
  5. Pass - Implement minimum code to make the test pass
  6. Refactor - Improve design if needed (optional)
  7. Repeat - Move to next behavioral variant from the list

Test structure (pseudocode):

Test_CreateConfig_InEmptyDirectory_ShouldSucceed:
    Arrange: Create empty temporary directory
    Act: Call CreateConfig(path)
    Assert: No error returned, file exists

Test_CreateConfig_WhenFileExists_ShouldFail:
    Arrange: Create directory with existing config file
    Act: Call CreateConfig(path)
    Assert: Error returned

Location: Test files in source tree (language-specific conventions)

Implementation: Unit test files follow language-specific naming conventions and are placed alongside the code they test. See your implementation guide for complete code examples.

How Layers Interact

Discovery to Implementation Flow

Mermaid diagram

Traceability Chain

Mermaid diagram

Implementation: Specifications are stored in feature-specific directories, with step definitions and unit tests organized according to language conventions. See your implementation guide for project structure details.

Development Workflow

Discovery Phase

Activities:

  1. Event Storming → Domain understanding and Ubiquitous Language
  2. Example Mapping → Feature scenarios using domain vocabulary
  3. Write specification.feature with Rules and Scenarios

Outputs:

  • Domain vocabulary documented
  • specs/<module>/<feature>/specification.feature created
  • specs/<module>/<feature>/issues.md for red cards

Implementation Phase

Red-Green-Refactor:

  1. Write step definitions (test implementation)
  2. Write failing unit test (Red)
  3. Implement minimum code (Green)
  4. Refactor for quality
  5. Repeat until scenarios pass

Implementation: Step definitions are implemented in language-specific test files. See your implementation guide for file organization and naming conventions.

Definition of Done:

  • ✅ All scenarios passing
  • ✅ Code reviewed and refactored
  • ✅ Specs synchronized with implementation
  • ✅ Stakeholders validated behavior

Continuous Improvement

Mermaid diagram

Review Cadence:

  • Weekly during active development - sync specs with code
  • Monthly during maintenance - prevent drift
  • Quarterly comprehensive - major refactoring, Event Storming validation
  • Event-driven when requirements change

Iteration Activities:

  • Add scenarios for discovered edge cases
  • Refine ambiguous steps
  • Update Rules based on learnings
  • Split large files (>20 scenarios)
  • Remove deprecated scenarios
  • Align language with Ubiquitous Language

Architecture: Specifications vs Implementation

Critical Separation: WHAT vs HOW

Mermaid diagram

Implementation: Specifications in specs/, with step definitions and unit tests organized according to language-specific conventions. See your implementation guide for project structure details.

Why Separate?:

  • Clarity: Specs focus on "what should happen", code focuses on "how"
  • Accessibility: Business reviews specs without seeing code
  • Flexibility: Refactor implementation without changing specs (if behavior unchanged)
  • Maintenance: Specs evolve with business, code evolves with technology

Example:

Specification (WHAT) Implementation (HOW)
Given I have an account testDB.CreateUser(username, hash)
When I run "r2r login" exec.Command("r2r", "login").Run()
Then I should be authenticated os.ReadFile("~/.r2r/session")

Key Insight: Specification describes user-visible behavior; implementation handles technical details (database, filesystem, process execution).

Practical Example: Evolution

Week 1 (Initial)

Rule: Valid credentials grant access

  @ov
  Scenario: User logs in
    When I login
    Then I am authenticated

Week 2 (After Implementation)

Rule: Valid credentials grant access

  @ov
  Scenario: User logs in with valid credentials
    Given I have an account with username "admin"
    When I run "r2r login --user admin --password secret"
    Then I should be authenticated
    And my session token should be stored in ~/.r2r/session
    And I should see "Login successful"

Month 1 (After Production)

Rule: Valid credentials grant access within rate limits

  @ov
  Scenario: User logs in with valid credentials
    Given I have an account with username "admin"
    When I run "r2r login --user admin --password secret"
    Then I should be authenticated
    And my session token should be stored in ~/.r2r/session

  @ov
  Scenario: User exceeds login attempt rate limit
    Given I have failed to login 5 times in the last minute
    When I run "r2r login --user admin --password secret"
    Then I should see "Rate limit exceeded. Try again in 60 seconds"
    And I should not be authenticated

Evolution drivers: Implementation discovery, production usage, security requirements

Tag Usage Across Layers

The three layers use different tag types:

Rules Layer:

  • Uses organizational tags for traceability: @ac1, @ac2 (links scenarios to Rules)

Scenario Layer:

  • Uses testing taxonomy tags: @ov, @iv, @pv (verification) + @L2, @L3, @L4 (level)
  • See Testing Taxonomy for complete taxonomy

Unit Test Layer:

  • Uses test level markers to categorize tests by isolation and speed
  • L0: Isolated, no I/O (fastest)
  • L1: Unit tests with minimal dependencies (default)
  • L2: Integration tests with emulated dependencies

Implementation: Uses language-specific build tags or test markers to categorize tests by isolation level. See your implementation guide for details on test level syntax and configuration.

Example:

Rule: Valid credentials grant access

  @ov
  Scenario: User logs in with valid credentials

For complete tag documentation, see:

Key Principles

  1. Three layers, one file - Rules and Scenarios in specification.feature, implementations in src/
  2. Continuous evolution - Specs and code evolve together through feedback loops
  3. Ubiquitous Language - Same terms across business discussions, specs, and code
  4. Traceability - Feature Name links all artifacts across specs/ and src/
  5. Separation of concerns - Specs define WHAT, implementations define HOW

Remember: The goal is executable, maintainable specifications that guide development - not bureaucratic overhead.
