Testing Strategy: Overview

Introduction

Testing is integrated throughout every stage of the Continuous Delivery Model. Rather than treating testing as a separate phase that happens after development, the CD Model embraces continuous validation through multiple test levels executed at different stages.

This article explains the test taxonomy used in the CD Model, the purpose of each test level, and how the shift-left strategy improves quality while reducing costs.

Why Multiple Test Levels

Different test levels serve different purposes:

• Speed vs Coverage: Fast unit tests provide rapid feedback, while slower E2E tests validate complete workflows
• Isolation vs Realism: Isolated tests are reliable and fast, while integrated tests catch real-world issues
• Early Detection: Shift-left testing finds defects when they're cheapest to fix
• Confidence: Multiple validation layers build confidence in quality

The CD Model uses a taxonomy of test levels (L0-L4) based on execution environment and scope to balance speed, coverage, and confidence.

Test Taxonomy

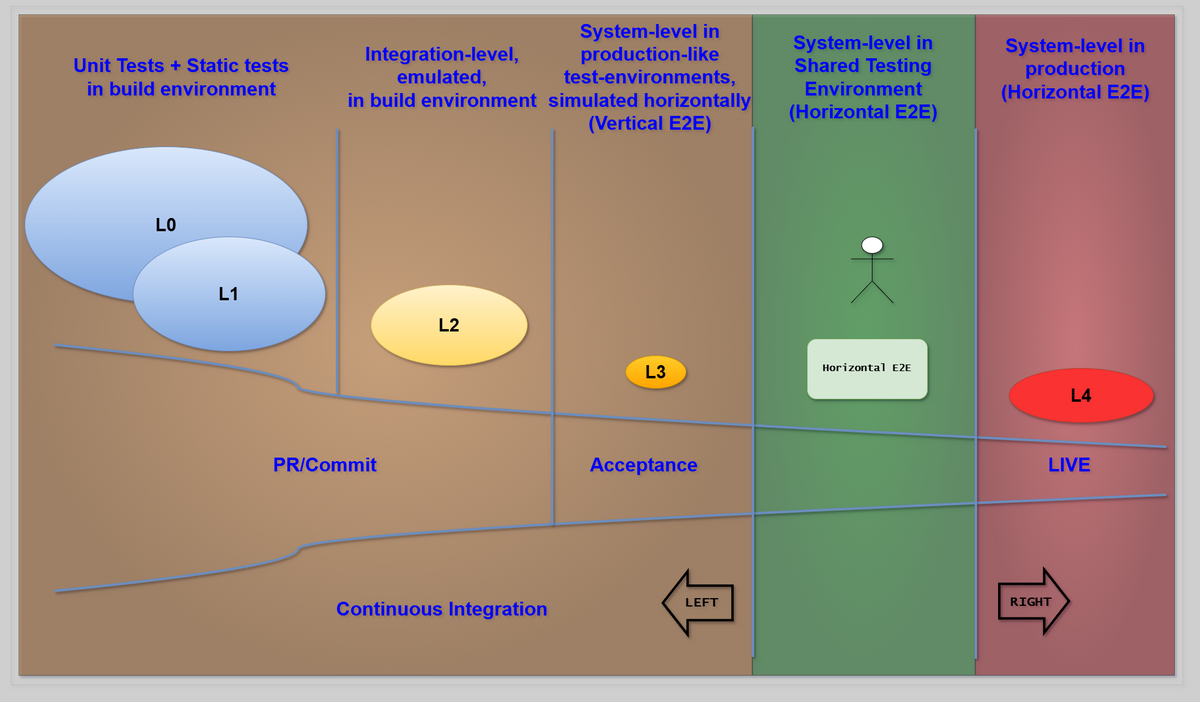

This diagram shows the taxonomy in context of shift-left and shift-right: The left side shows L0-L3 tests (shift-left) running in local/agent/PLTE environments with increasing scope from unit to vertical testing. The right side shows L4 tests (shift-right) running in production for horizontal validation. The center "out-of-category" area represents the anti-pattern of horizontal pre-production environments to avoid.

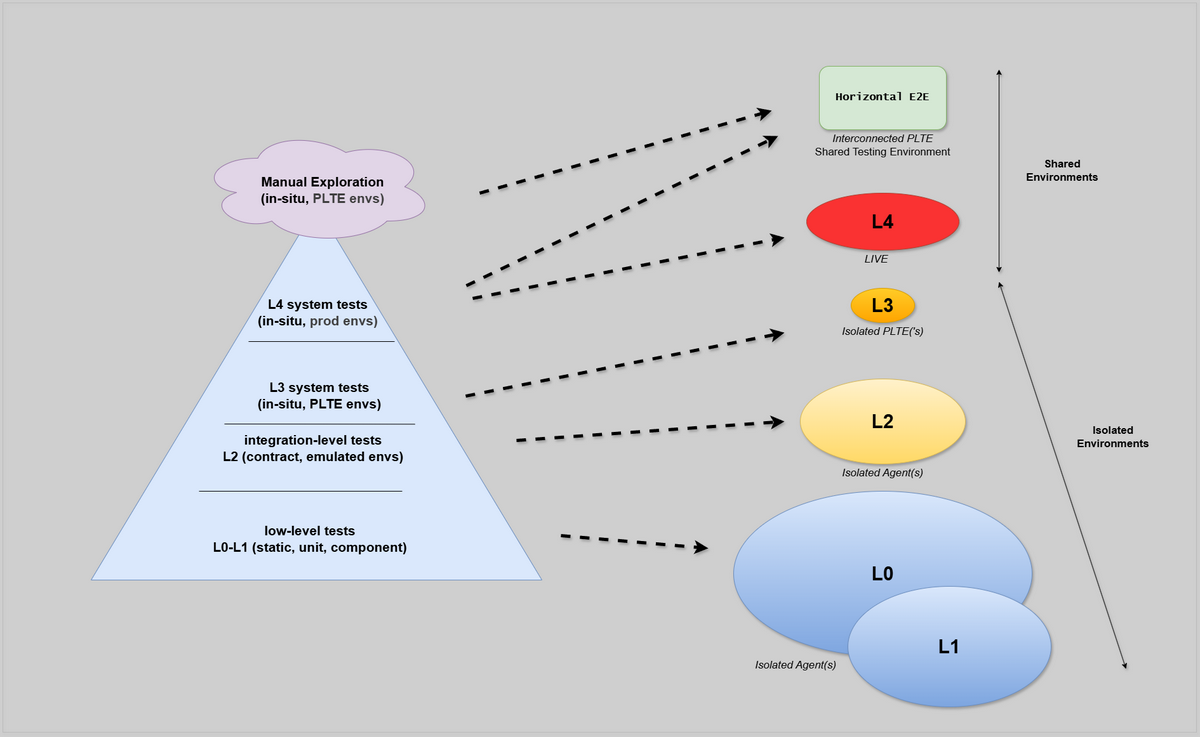

This diagram maps test levels to execution constraints: Shows how L0-L2 (local/agent), L3 (PLTE vertical), and L4 (production horizontal) are categorized by execution environment, scope, and test double usage. The breakdown illustrates the determinism vs coherency trade-off as you progress from L0 to L4.

How Tests Are Categorized

The taxonomy defines test categories based on execution environment and scope:

Out-of-Category (Anti-Pattern):

Old-school horizontal pre-production environments where multiple teams' pre-prod services are linked together are highly fragile and non-deterministic. This taxonomy explicitly advocates shifting LEFT (to L0-L3) and RIGHT (to L4) to avoid this pattern.

Determinism vs Domain Coherency Trade-off

The taxonomy constrains two key aspects:

• Execution requirements: What binaries, tooling, and configuration are needed
• Test scope: Vertical vs horizontal boundaries, and test double usage

Determinism (Lower Lx values):

• Predictable, repeatable results
• Fast execution
• Reliable failure signals
• Easy to debug
• Highest in L0-L1 (controlled environments, test doubles)

Domain Coherency (Higher Lx values):

• Realistic domain language
• Actual production behavior
• Real cross-service interactions
• Business-meaningful validation
• Highest in L4 (production environment)

Lower Lx values provide higher determinism but lower domain coherency, while higher Lx values provide lower determinism but higher domain coherency.

The Shift-Left and Shift-Right Strategy:

Maximize testing at L0-L3 (left) and L4 (right) to avoid the out-of-category anti-pattern (Horizontal E2E): horizontal pre-production environments where multiple teams' pre-prod services are linked together. These tests are highly fragile and non-deterministic.

Each level builds on the confidence provided by lower levels.

Tag Taxonomy

The testing taxonomy uses tags to categorize tests by level, verification type, and dependencies. See Testing Taxonomy for complete documentation.

Key Tag Categories:

• Test Level Tags (@L0-@L4) - Execution environment and scope
• Verification Tags (@ov, @iv, @pv, @piv, @ppv) - REQUIRED for all Gherkin scenarios
• System Dependencies (@deps:*) - Declare required tooling
• Test Suites - Tag-based test selection (commit, integration, acceptance, production-verification)

Tag Examples by Test Level:

• L0-L1: Go tests (no Gherkin verification tags)
• L2: @L2 @ov (operational verification)
• L3: @L3 @iv (installation), @L3 @pv (performance), @L3 @ov (operational)
• L4: @L4 @piv (installation), @L4 @ppv (performance)

L0: Unit Tests

Purpose: Validate individual functions, methods, and classes in isolation.

Characteristics

Speed:

• Milliseconds per test
• Hundreds or thousands of tests complete in seconds
• Fastest feedback possible

Isolation:

• No external dependencies
• No network calls
• No file system access
• No database queries
• All dependencies mocked or stubbed

Scope:

• Single function or method
• Single class or module
• Pure logic validation

Example:

// Unit test for validation logic
func TestValidateEmail(t *testing.T) {
    tests := []struct {
        name    string
        email   string
        wantErr bool
    }{
        {"valid email", "user@example.com", false},
        {"missing @", "userexample.com", true},
        {"empty string", "", true},
    }

    for _, tt := range tests {
        t.Run(tt.name, func(t *testing.T) {
            err := ValidateEmail(tt.email)
            if (err != nil) != tt.wantErr {
                t.Errorf("ValidateEmail() error = %v, wantErr %v", err, tt.wantErr)
            }
        })
    }
}

Tools and Frameworks

• Go: testing package, testify
• JavaScript: Jest, Mocha, Jasmine
• Python: pytest, unittest
• Java: JUnit, TestNG

Best Practices

• Test public APIs, not implementation details
• Use table-driven tests for multiple cases
• Aim for 80%+ code coverage
• Keep tests independent and deterministic
• Mock all external dependencies

When to Write L0 Tests

• For all business logic
• For utility functions
• For data transformations
• For validation logic
• For calculations and algorithms

CD Model Integration

Stages:

• Stage 2 (Pre-commit): 5-10 minute time-box
• Stage 3 (Merge Request): PR validation
• Stage 4 (Commit): Continuous integration

Quality Gates:

• 100% pass rate required
• Minimum coverage thresholds
• No skipped tests

L1: Unit Tests

Purpose: Validate interactions within a component or service, using mocks for external dependencies.

Note: L1 shares the same taxonomy classification as L0 (both are "Unit Tests" running on devbox or agent with all external dependencies replaced by test doubles). L1 typically involves testing interactions between internal modules within a component, while L0 focuses on individual functions or methods.

Characteristics

Speed:

• Seconds per test
• Faster than full integration tests
• Still suitable for pre-commit

Isolation:

• Tests one component at a time
• External dependencies mocked
• Internal component interactions tested
• No network calls to external services

Scope:

• Multiple classes/modules within a component
• Internal APIs and interfaces
• Data flow through the component

Example:

// Component integration test with mocked repository
func TestUserService_CreateUser(t *testing.T) {
    mockRepo := &MockUserRepository{
        SaveFunc: func(user *User) error {
            return nil
        },
    }

    service := NewUserService(mockRepo)

    user := &User{Name: "John", Email: "john@example.com"}
    err := service.CreateUser(user)

    assert.NoError(t, err)
    assert.True(t, mockRepo.SaveCalled)
}

Mocking Strategies

Manual Mocks:

• Implement interfaces manually
• Full control over behavior
• Suitable for simple interfaces

Generated Mocks:

• Use tools like mockgen, mockery
• Generated from interfaces
• Consistent and maintainable

Test Doubles:

• Stubs: Return predetermined values
• Fakes: Working implementations (e.g., in-memory database)
• Spies: Record calls for verification

When to Use vs L0

Use L1 when:

• Testing interactions between internal modules
• Validating service orchestration logic
• Testing error handling across layers
• Verifying data transformation pipelines

Use L0 when:

• Testing individual functions
• No interactions to validate
• Pure logic without dependencies

CD Model Integration

Stages:

• Stage 2 (Pre-commit): Run alongside L0
• Stage 4 (Commit): Continuous validation

L2: Emulated System Tests

Purpose: Validate deployable artifacts in an emulated environment with all external dependencies replaced by test doubles.

Characteristics

Speed:

• Seconds per test
• Runs on CI agent
• Suitable for pre-commit and commit stages

Execution Environment:

• Developer workstation OR CI agent (same as L0-L1)
• Does NOT require cloud infrastructure or PLTE
• Runs in local or agent environments only

Isolation:

• All external dependencies replaced with test doubles
• In-memory databases or test doubles for persistence
• No real external service calls

Scope:

• Deployable artifacts tested in emulated environment
• Component-to-component communication within the unit-under-test
• API contract validation using test doubles
• Data flow through multiple components
• Message handling with test double queues

Example:

// L2 integration test with test double database
func TestUserService_CreateAndRetrieveUser(t *testing.T) {
    // Test double: in-memory repository
    mockRepo := NewInMemoryUserRepository()

    service := NewUserService(mockRepo)
    user := &User{Name: "Jane", Email: "jane@example.com"}

    // Test the integration between service and repository
    err := service.CreateUser(user)
    assert.NoError(t, err)

    // Verify through the service (tests the full flow)
    retrieved, err := service.GetUserByEmail("jane@example.com")
    assert.NoError(t, err)
    assert.Equal(t, user.Name, retrieved.Name)
}

Test Doubles for All External Dependencies

L2 Taxonomy Constraint: All external dependencies must be replaced with test doubles.

Why Test Doubles:

• Determinism: Predictable, repeatable results
• Speed: No network latency or external service delays
• Reliability: No flaky external service failures
• Isolation: Tests only the unit-under-test logic

Types of Test Doubles:

• In-memory databases: SQLite in-memory, test repositories
• Mock message queues: In-memory queue implementations
• Stubbed external APIs: Return predetermined responses
• Fake services: Lightweight implementations for testing
• Test double runtimes: Other containers in the composition can be full test databases etc.

CD Model Integration

Stages:

• Stage 4 (Commit): Run after L0/L1 pass
• Stage 5 (Acceptance Testing): In PLTE environment

L3: In-Situ Vertical Tests

Purpose: Validate a deployable module in-situ in a production-like environment (PLTE) with vertical testing boundaries.

Characteristics

Speed:

• Minutes per test
• Deployed to PLTE (cloud environment)
• Moderate execution time

Isolation:

• Single deployable module boundaries only (vertical testing)
• All external dependencies replaced with test doubles
• Tests the deployed system in production-like infrastructure
• Validates deployment and configuration

Scope:

• Deployed system tested in-situ in PLTE
• Single deployable module behavior in production-like infrastructure
• Infrastructure validation (networking, load balancing, DNS)
• Deployment procedure verification
• Configuration correctness
• NOT cross-service integration (that's L4)

PLTE Requirement:

L3 tests require a Production-Like Test Environment (PLTE) because they:

• Validate the deployable module runs correctly in cloud infrastructure
• Test with production-like networking, storage, and compute
• Verify deployment procedures work
• Validate infrastructure configuration (e.g., Kubernetes, load balancers)
• Do NOT test cross-service interactions (use test doubles for other services)

Example (Godog):

Feature: API Service Deployment Verification

  @L3 @iv
  Scenario: Service deploys successfully to PLTE
    Given the API service is deployed to PLTE
    When I check the health endpoint
    Then the service should respond with status 200
    And all dependencies should report healthy

  @L3 @ov
  Scenario: API handles requests in PLTE infrastructure
    Given the API service is running in PLTE
    And external dependencies are test doubles
    When I send a user creation request
    Then the API should process the request successfully
    And the response should match the expected format

Vertical Testing Scope

What L3 Tests Validate:

• Deployable module runs in production-like infrastructure
• Deployment procedures work correctly
• Infrastructure configuration is correct (networking, DNS, load balancing)
• Service responds correctly in cloud environment
• Vertical slice: Single unit boundaries only

What L3 Tests Don't Validate:

• Cross-service interactions (that's L4 in production)
• External service integration (use test doubles)
• Complete end-to-end user workflows (that requires horizontal testing in L4)

CD Model Integration

Stages:

• Stage 5 (Acceptance Testing): In PLTE
• Stage 6 (Extended Testing): Comprehensive E2E suite

Best Practices:

• Limit to critical user workflows (5-20 scenarios)
• Keep tests maintainable and reliable
• Run in parallel where possible
• Use BDD frameworks for readability

L4: Testing in Production

Purpose: Validate real-world cross-service interactions in production with horizontal testing.

Characteristics

Speed:

• Variable (seconds to minutes per test)
• Runs in production
• May use synthetic traffic

Isolation:

• Production environment
• Cross-service interactions (horizontal testing)
• All production dependencies, may use live test doubles for specific cases
• Real production infrastructure and data

Scope:

• Deployed system tested in production
• Cross-service workflows in production
• Real end-to-end user journeys
• Actual production behavior
• Business-meaningful validation
• Real data and real services interacting

Horizontal Testing in Production

What L4 Tests Validate:

• Real cross-service interactions in production
• Actual end-to-end workflows with production data
• Production infrastructure behavior under real load
• Service mesh / networking in production
• Real user journeys (via synthetic monitoring or shadowing)

Test Double Usage in Production:

L4 may use test doubles for specific cases:

• Test payment processors: Route test payments through test-double payment service
• Test notification services: Capture test emails/SMS without sending to real users
• Canary users: Route specific test users through test paths

Examples:

Feature: Production Cross-Service Validation

  @L4 @piv
  Scenario: Complete order fulfillment workflow
    Given I am a test user in production
    When I place an order through the API
    Then the order service should create the order
    And the payment service should charge the test payment method
    And the inventory service should reserve the items
    And the notification service should send a test confirmation email

  @L4 @ppv
  Scenario: Synthetic monitoring of critical path
    Given synthetic monitoring is running
    When the synthetic transaction executes every 5 minutes
    Then the complete user journey should succeed
    And response times should be within SLA

Exploratory and UAT

L4 also includes human-driven validation:

Exploratory Testing:

• Session-based testing in production (read-only or test accounts)
• Discovering unexpected behaviors in real environment

UAT (User Acceptance Testing):

• Real users validating in production (feature flags control exposure)
• Business stakeholder sign-off based on production behavior

CD Model Integration

Stages:

• Stage 11 (Live): Primary stage for L4 production testing
• Stage 12 (Release Toggling): Control test user exposure via feature flags
• Production environment with monitoring and observability

Horizontal End-to-End Testing (Out-of-Category Anti-Pattern)

Taxonomy Classification:

• Out-of-Category
• Horizontal End-to-End
• non-shifted
• Shared testing environment
• Tied up to non-production team to team synchronized test deployments
• Lowest determinism
• High domain coherency

Horizontal End-to-End (Horizontal E2E) testing refers to environments where multiple teams deploy pre-production versions of their services to a shared environment, with services interacting horizontally (service A calls service B calls service C).

Characteristics

• Multiple teams deploy pre-production versions of their services to shared environment
• Services interact horizontally across team boundaries
• Each team controls deployment timing independently
• Version mismatches are common
• Difficult to reproduce issues locally
• Lowest determinism of all test approaches
• Non-shifted (neither left nor right in the shift strategy)

When It's Acceptable

Horizontal pre-production environments serve valid purposes in specific contexts:

Exploratory Testing:

• Manual testing to discover unexpected cross-service behaviors
• Session-based testing by QA teams
• Investigating integration scenarios before production

Validation and Demonstration:

• Stakeholder demos of cross-team features
• Pre-production validation of complex integrations
• Manual verification of deployment procedures
• Recommended: Call this environment "Demo" for its intended purpose

Important: These environments should be used for manual, exploratory activities - not as automated quality gates.

Anti-Pattern: Using as Automated Quality Gates

Critical: Horizontal E2E environments should NOT be used as automated quality gates in the deployment pipeline.

Problems when used for automated testing:

• Highly fragile: Any team's broken deployment breaks everyone's tests
• Non-deterministic (Lowest determinism): Test results vary based on other teams' deployments
• Slow feedback: Can't test until all dependencies are deployed
• Difficult debugging: Hard to isolate which service caused failure
• Blocking: One team's issues block other teams
• False signals: Tests fail due to environmental issues, not code defects

From the taxonomy: "If you decide to break this fundamental rule, all you need to do is to connect your L3 PLTE to something not a test double and you have automated tests running in L3 with external dependencies. This is not a technical constraint, its an inherent constraint in the nature of Horizontal E2E: No one can control the variables, so you are not performing verification, you are playing games."

The Solution: Shift-Left and Shift-Right

Instead of relying on Horizontal E2E environments for automated testing, shift testing LEFT (L0-L3) and RIGHT (L4):

Shift LEFT (L0-L3):

• L0-L1: Unit tests with test doubles on devbox/agent
• L2: Emulated system tests with test doubles on devbox/agent
• L3: In-situ vertical tests in PLTE with test doubles for external services
• Result: Fast feedback, high determinism, no cross-team dependencies

Shift RIGHT (L4):

• L4: Testing in production with real services
• Use feature flags, canary deployments, synthetic monitoring
• Result: Real production validation without pre-prod fragility

Avoid the non-shifted middle ground (Horizontal E2E as automated quality gates) - it combines the worst of both worlds: slow, fragile, and non-deterministic.

Shift-Left Strategy

This diagram illustrates shift-left and shift-right strategy: The traditional center approach (shared testing environments with horizontal integration) is replaced by two strategies. Shift-left (left arrow) moves testing to L0-L3 with test doubles in local/agent/PLTE environments for fast, deterministic feedback. Shift-right (right arrow) moves horizontal validation to L4 in production with real services. Avoid the fragile middle ground of pre-production integration environments.

Implementation

Shift-Left (L0-L3): Run tests with test doubles on local/CI/PLTE environments (Stages 2-6) for fast, deterministic feedback - catch defects early when cheapest to fix.

Shift-Right (L4): Run horizontal tests in production (Stages 11-12) with real services for validation of actual production behavior - synthetic monitoring and exploratory testing.

Avoid the Middle: Skip horizontal pre-production integration environments - they're fragile, non-deterministic, and slow.

Summary

The CD Model uses a taxonomy based on execution environment and scope:

L0-L1: Unit Tests (Shift LEFT):

• Execution: Devbox or agent
• Scope: Source and binary
• Dependencies: All replaced with test doubles
• Tags: Go tests (no Gherkin verification tags)
• Trade-off: Highest determinism, lowest domain coherency

L2: Emulated System Tests (Shift LEFT):

• Execution: Devbox or agent
• Scope: Deployable artifacts
• Dependencies: All replaced with test doubles
• Tags: @L2 @ov (operational verification)
• Trade-off: High determinism, high domain coherency

L3: In-Situ Vertical Tests (Shift LEFT):

• Execution: PLTE
• Scope: Deployed system (single deployable module boundaries)
• Dependencies: All replaced with test doubles
• Tags: @L3 @iv (installation), @L3 @pv (performance), @L3 @ov (operational)
• Trade-off: Moderate determinism, high domain coherency

L4: Testing in Production (Shift RIGHT):

• Execution: Production
• Scope: Deployed system (cross-service interactions)
• Dependencies: All production, may use live test doubles
• Tags: @L4 @piv (installation), @L4 @ppv (performance)
• Trade-off: High determinism, highest domain coherency

Out-of-Category: Horizontal End-to-End (Anti-Pattern):

• Execution: Shared testing environment (non-shifted)
• Scope: Deployed system
• Dependencies: Tied up to non-production "test" deployments
• Trade-off: Lowest determinism, high domain coherency

The shift-left and shift-right strategy maximizes testing at L0-L3 (left) and L4 (right) to avoid the out-of-category anti-pattern (Horizontal E2E) of fragile horizontal pre-production environments.

Tag Usage:

See Testing Taxonomy for complete documentation of all tags, verification requirements, test suites, and filtering rules.

Next Steps

• Testing Strategy Integration - Map test levels to CD Model stages
• Stages 1-7 - See testing in development stages
• Stages 8-12 - See testing in release stages
• Environments - Understand PLTE for L3 tests

References

• CD Model Overview
• Stages 1-7
• Three-Layer Testing

Tutorials | How-to Guides | Explanation | Reference

You are here: Explanation — understanding-oriented discussion that clarifies concepts.
