Testing Strategy: Integration with CD Model

Introduction

This article explains how test levels integrate with CD Model stages, the process isolation strategies for each level, and how testing aligns with the Rules/Scenarios/Unit Tests approach. Understanding this integration ensures you execute the right tests at the right stages with appropriate quality gates.

Test Level Environment Mapping

L0-L1: Unit Tests (DevBox and Build Agents)

L0-L1 Execution:

• Name: Unit Tests
• Shift Direction: LEFT
• Environment: Devbox or agent (Stage 2, Stages 3-4)
• Scope: Source and binary
• Test doubles: ALL external dependencies replaced
• Process: In-process
• Determinism: Highest
• Domain Coherency: Lowest

L2: Emulated System Tests (DevBox and Build Agents)

L2 Execution:

• Name: Emulated System Tests
• Shift Direction: LEFT
• Environment: Devbox or agent (Stages 3-4)
• Scope: Deployable artifacts
• Test doubles: ALL external dependencies replaced
• Process: Cross-process with test doubles
• Determinism: High
• Domain Coherency: High

L3: In-Situ Vertical Tests (PLTE)

L3 Execution:

• Name: In-Situ Vertical Tests
• Shift Direction: LEFT
• Environment: PLTE only (Stages 5-6)
• Scope: Deployed system (single deployable module boundaries - vertical)
• Test doubles: ALL external services replaced with test doubles
• Purpose: Validate infrastructure, deployment, and configuration
• Determinism: Moderate
• Domain Coherency: High

This diagram shows L3 in-situ vertical testing in PLTE: The deployed system is tested in-situ in a production-like cloud environment (PLTE) in Stages 5-6. Key distinction: tests validate the system's behavior in cloud infrastructure (networking, load balancing, deployment) with test doubles for ALL external services. NOT testing cross-service interactions.

L4: Testing in Production

L4 Execution:

• Name: Testing in Production
• Shift Direction: RIGHT
• Environment: Production (Stages 11-12)
• Scope: Deployed system (cross-service interactions - horizontal)
• Test doubles: All production, may use live test doubles
• Purpose: Validate real production behavior with actual services
• Determinism: High
• Domain Coherency: Highest

This diagram shows L4 testing in production: Tests run in the live production environment (Stages 11-12) to validate real cross-service interactions. May use live test doubles for specific cases like test payment processors. Includes synthetic monitoring and exploratory testing.

Out-of-Category: Horizontal End-to-End (Anti-Pattern)

Horizontal E2E Execution (Anti-Pattern):

• Name: Horizontal End-to-End
• Shift Direction: non-shifted
• Environment: Shared testing environment
• Scope: Deployed system
• Test doubles: Tied up to non-production "test" deployments
• Determinism: Lowest
• Domain Coherency: High

This diagram shows the anti-pattern: Horizontal end-to-end tests in pre-production environments where multiple teams' services are linked. This is highly fragile and non-deterministic. The taxonomy explicitly advocates shifting LEFT (L0-L3) and RIGHT (L4) to avoid this pattern.

Process Isolation Explained

L0/L1 Isolation: In-Process Testing

The test orchestration (A) and system under test (SUT) (B) run in the same process. All external dependencies are replaced with in-process mocks or stubs. No network calls, no separate processes - everything executes as function calls within a single OS process.

In-Process Execution:

L0 and L1 tests run within the same process as the code under test:

No Network Calls:

• No TCP/UDP connections
• No HTTP requests
• No database connections
• All interactions via function calls

Fast Execution:

• Function call overhead only
• No serialization/deserialization
• No network latency
• No process startup time

Isolation Strategy:

• Mock external dependencies at interface boundaries
• Use dependency injection
• Stub out I/O operations
• Keep tests independent

Example:

// L0: In-process test with mock
func TestUserService_CreateUser(t *testing.T) {
    // Mock repository - no database, in-process
    mockRepo := &MockUserRepository{}

    // Service under test - same process
    service := NewUserService(mockRepo)

    // Test execution - all in-process, no network
    err := service.CreateUser(&User{Name: "John"})

    assert.NoError(t, err)
}

L2 Isolation: Cross-Process with Test Doubles

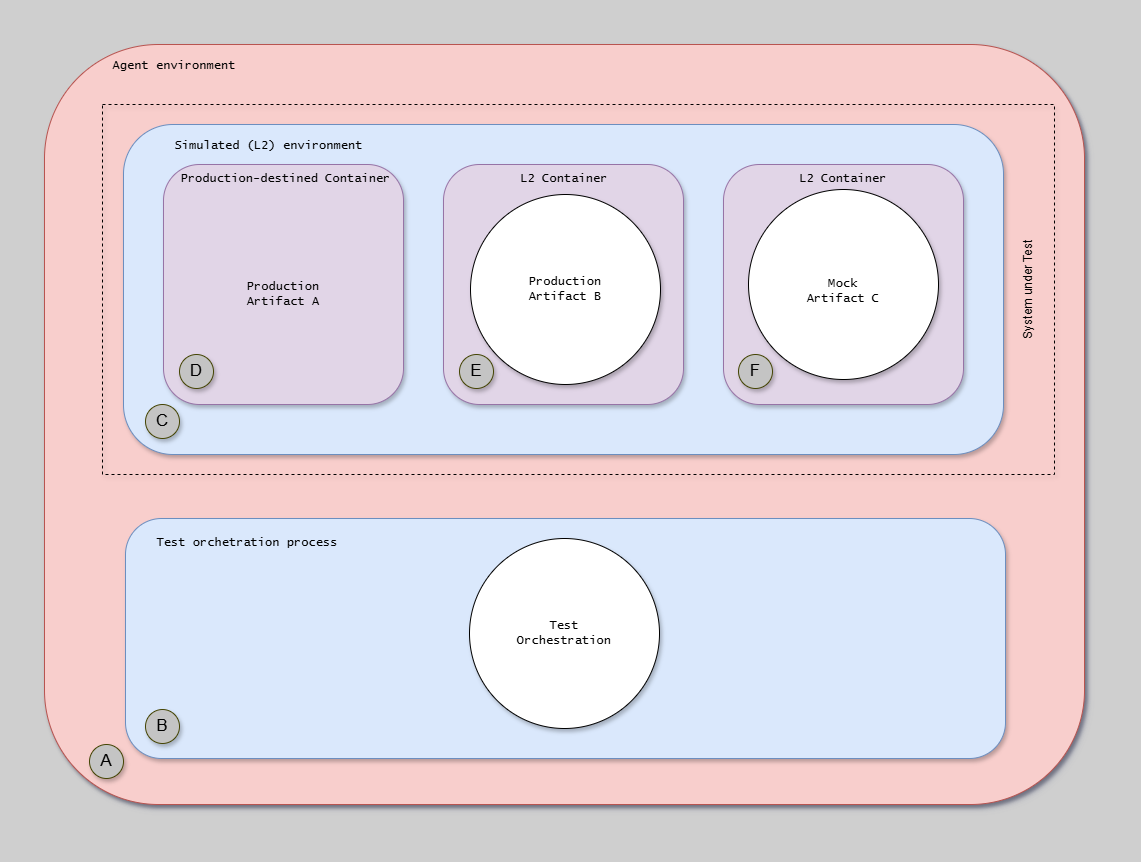

Tests run in an emulated environment on a single OS (A). Test orchestration (B) is separate from the SUT (C). Production artifacts (D) and (E) are deployed (some in test containers), but all external dependencies use mock artifacts (F) like test double services. Network calls occur, but only to test doubles, not real external services.

Cross-Process Execution:

L2 tests involve multiple processes communicating over network:

Network Call Handling:

• HTTP requests between processes
• Database connections over network
• Message queue interactions
• gRPC or other RPC protocols

Test Double Strategies:

Option 1: Real Internal Dependencies:

// L2: Real database, cross-process
func TestUserRepository_Save(t *testing.T) {
    db := setupTestDatabase(t) // Real database process
    repo := NewUserRepository(db)

    user := &User{Name: "Jane"}
    err := repo.Save(user) // Network call to database

    assert.NoError(t, err)
}

Option 2: Mock External Services:

// L2: Real database, mocked external API
func TestOrderService_CreateOrder(t *testing.T) {
    db := setupTestDatabase(t) // Real
    mockPayment := startMockPaymentAPI(t) // Test double

    service := NewOrderService(db, mockPayment.URL())

    order := &Order{Total: 100}
    err := service.CreateOrder(order)

    assert.NoError(t, err)
}

Isolation Considerations:

• Use test databases with unique names or schemas
• Reset database state between tests
• Use containerized dependencies (Docker)
• Parallel execution requires careful isolation

L3 Isolation: In-Situ Vertical in PLTE with Test Doubles

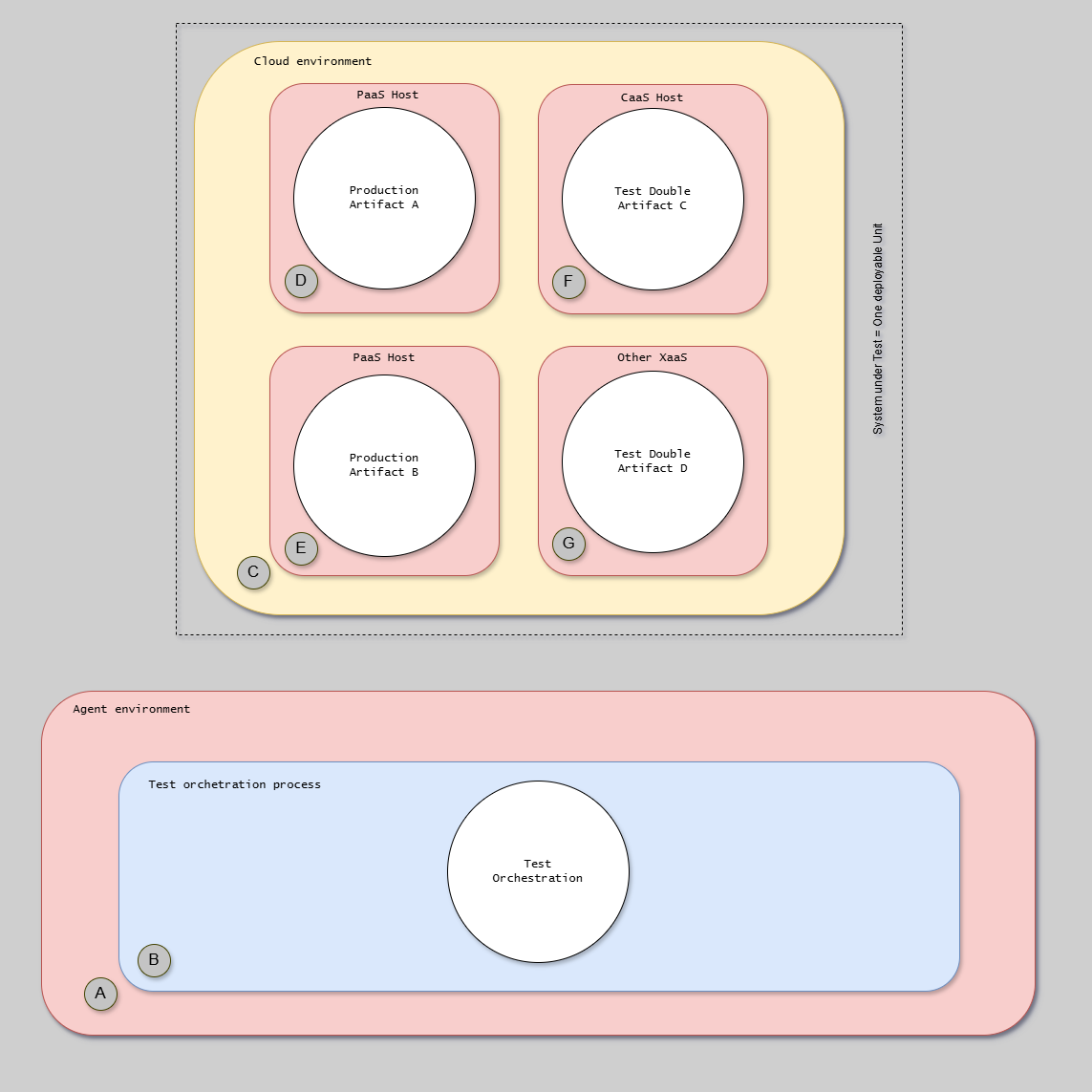

The deployed system (C) is tested in production-like cloud infrastructure (no longer emulated). Test orchestration (B) runs on test agents (A). Production artifacts (D) and (E) are deployed to their actual PaaS hosts. Critical: mock artifacts (F) and (G) replace ALL external services and dependencies. Tests validate the deployed system in cloud infrastructure, not cross-service interactions.

In-Situ Vertical Testing in PLTE:

L3 validates the deployed system in-situ in production-like infrastructure:

• Deployed system running on actual cloud PaaS hosts
• Test doubles for ALL external services (databases, queues, external APIs)
• Validates infrastructure (networking, load balancing, DNS, deployment)
• Does NOT test cross-service interactions (that's L4 in production)

Example (Godog):

# L3: In-situ vertical test in PLTE with test doubles
Feature: API Service Deployment

  @L3 @iv
  Scenario: Service deploys correctly to PLTE
    Given the API service is deployed to PLTE
    And external services are test doubles
    When I check the health endpoint
    Then the service should respond successfully
    And infrastructure should be correctly configured

Tag Usage and Test Suites

The testing strategy uses tags to select tests for execution at specific CD Model stages. See Testing Taxonomy for complete tag documentation.

Test Level to Stage Mapping:

• Stages 2-4: @L0, @L1, @L2 tests (pre-commit suite)
• Stages 5-6: @L3 tests (acceptance suite with @iv, @ov, @pv)
• Stages 11-12: @L4 tests (production-verification suite with @piv, @ppv)

Tag Requirements:

• All Gherkin scenarios MUST have verification tag (@ov, @iv, @pv, @piv, @ppv)
• System dependencies declared with @deps:* tags
• Tags inherit from Feature → Rule → Scenario

Test Levels by CD Model Stage

Detailed Stage Mapping

Key Stage Transitions

Stages 2-4: L0-L2 tests with test doubles on local/CI agents (5-30 min total) - fast, deterministic validation

Stages 5-6: L3 vertical tests in PLTE with test doubles (1-8 hours) - infrastructure and deployment validation

Stages 11-12: L4 horizontal tests in production (continuous) - real cross-service validation

Integration with Rules/Scenarios/Unit Tests

The CD Model integrates three testing methodologies:

Unit Tests → L0-L2:

• L0-L1: Unit tests with test doubles (source and binary scope)
• L2: Emulated system tests with test doubles (deployable artifacts scope)
• Drive design and validate logic with test doubles
• Process: Red → Green → Refactor
• All external dependencies mocked

Vertical End To End → L3:

• L3: In-situ vertical tests in PLTE with test doubles (deployed system scope)
• Validate deployed system behavior in-situ in PLTE
• Process: Gherkin scenarios → Step implementations
• Vertical testing boundaries only

Continuous Production → L4:

• L4: Testing in production (deployed system scope, horizontal)
• Validate acceptance criteria in production
• Process: Define criteria → Validate in production
• Horizontal testing with real services

See Three-Layer Testing Approach for detailed integration.

Test Distribution

Recommended Distribution:

• L0-L2: 95% of tests (hundreds to thousands) - Fast, deterministic, test doubles
• L3: 5% of tests (5-20 critical vertical scenarios) - Infrastructure validation in PLTE
• L4: Continuous (synthetic monitoring + exploratory) - Production horizontal validation

Shift-Left and Shift-Right Strategy:

Maximize testing at L0-L3 (left) and L4 (right) to avoid horizontal pre-production environments. This provides fast deterministic feedback (L0-L3) and real production validation (L4) without the fragility of pre-production integration environments.

Next Steps

• Testing Strategy Overview - Learn about test levels
• Stages 1-7 - See testing in development stages
• Environments - Understand PLTE architecture
• Security - Integrate security testing

References

• CD Model Overview
• Three-Layer Testing Approach
