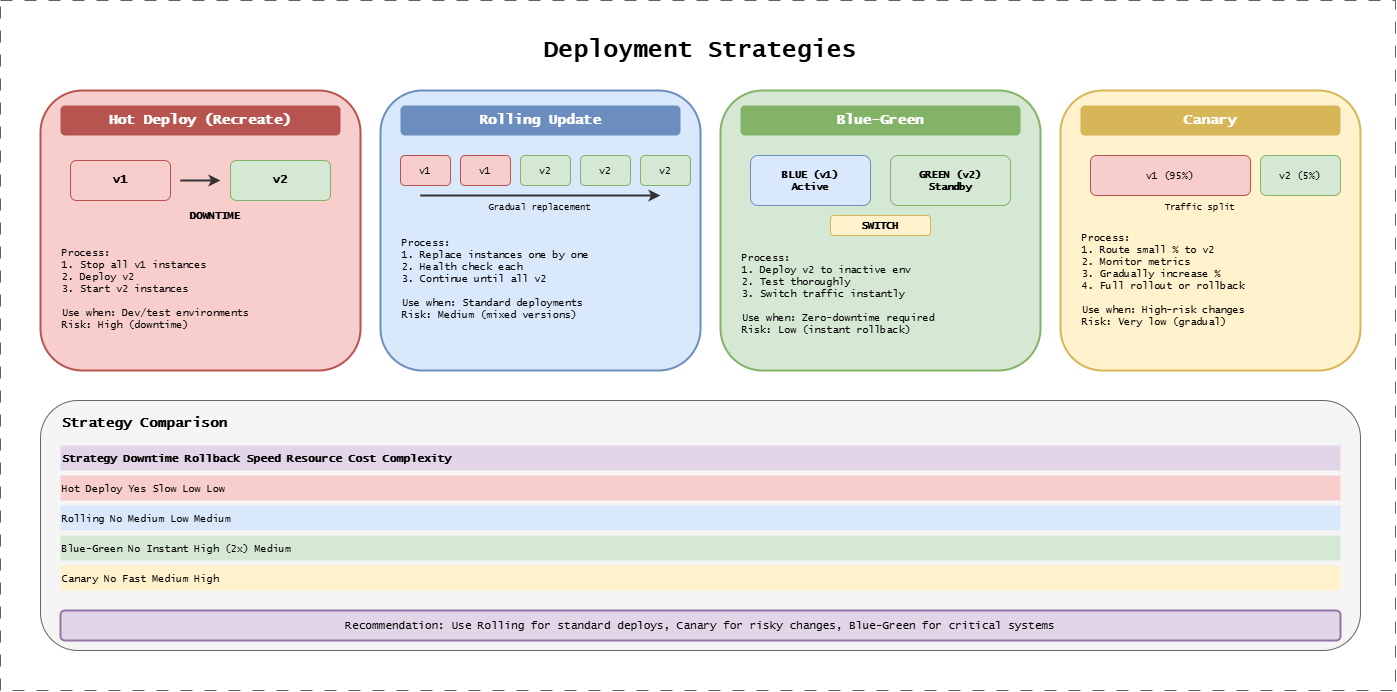

Introduction

A deployment strategy determines how new code reaches production and what happens if problems are detected. The right strategy balances:

• Risk: How much can go wrong?
• Speed: How fast can we deploy?
• Cost: What infrastructure is required?
• Complexity: How hard is it to implement and operate?

No single strategy fits all situations. Mature organizations use different strategies for different services based on risk profile, infrastructure, and business requirements.

---

Hot Deploy (In-Place Update)

What It Is

Hot deploy replaces running instances with new versions directly, in place, with a brief service interruption.

Process:

1. Stop running application instance
2. Replace application files with new version
3. Start application with new code
4. Verify health checks
5. Repeat for additional instances (if multiple)

Characteristics:

• Fastest deployment (seconds to minutes)
• Brief downtime during replacement (< 30 seconds per instance)
• Simple to implement
• Low infrastructure cost (no extra resources)
• Simple rollback (redeploy previous version)

When to Use

Best for:

• Single-instance applications (no load balancing)
• Acceptable brief downtime (internal tools, batch processing)
• Fast-starting applications (startup < 10 seconds)
• Small deployable modules (< 100 MB artifacts)
• Immature infrastructure (limited resources)

Not suitable for:

• User-facing applications requiring zero downtime
• Long startup times (> 1 minute)
• Stateful applications (active sessions lost)
• High-availability requirements

Example Implementation

#!/bin/bash
# hot-deploy.sh

echo "Stopping application..."
systemctl stop myapp

echo "Backing up current version..."
cp /opt/myapp/app /opt/myapp/app.backup

echo "Deploying new version..."
cp /artifacts/app-v1.2.0 /opt/myapp/app
chmod +x /opt/myapp/app

echo "Starting application..."
systemctl start myapp

echo "Verifying health..."
sleep 5
curl -f http://localhost:8080/health || {
    echo "Health check failed, rolling back..."
    systemctl stop myapp
    cp /opt/myapp/app.backup /opt/myapp/app
    systemctl start myapp
    exit 1
}

echo "Deployment successful"

Tradeoffs

Advantages:

• ✅ Simple to understand and implement
• ✅ Fast (1-2 minutes total)
• ✅ Low infrastructure cost
• ✅ Works with simple infrastructure

Disadvantages:

• ❌ Brief downtime (< 30 seconds)
• ❌ All-or-nothing (no gradual rollout)
• ❌ Rollback requires redeployment (1-2 minutes)
• ❌ Stateful sessions lost

---

Rolling Deployment

What It Is

Rolling deployment updates instances gradually - one or a few at a time - while others continue serving traffic.

Process:

1. Remove instance #1 from load balancer
2. Update instance #1 to new version
3. Verify health checks on instance #1
4. Add instance #1 back to load balancer
5. Repeat for instance #2, #3, etc.

Characteristics:

• Zero downtime
• Gradual rollout (percentage increases over time)
• Mixed versions running temporarily
• Built-in health checks stop rollout if issues detected
• Medium complexity

When to Use

Best for:

• Multiple instances (≥ 2 instances behind load balancer)
• Zero downtime required (user-facing applications)
• Backward-compatible changes (new version can coexist with old)
• Automated health checks (can detect deployment issues)

Not suitable for:

• Single instance applications
• Breaking changes (protocol changes, incompatible APIs)
• Database migrations requiring all instances on same version

Example Implementation

#!/bin/bash
# rolling-deploy.sh

INSTANCES=("instance-1" "instance-2" "instance-3")

for instance in "${INSTANCES[@]}"; do
    echo "Deploying to $instance..."

    # Remove from load balancer
    aws elb deregister-instances-from-load-balancer \
        --load-balancer-name my-lb \
        --instances $instance

    # Wait for drain
    sleep 30

    # Deploy new version
    ssh $instance "sudo systemctl stop myapp && \
                   sudo cp /artifacts/app-v1.2.0 /opt/myapp/app && \
                   sudo systemctl start myapp"

    # Wait for startup
    sleep 10

    # Health check
    if ! ssh $instance "curl -f http://localhost:8080/health"; then
        echo "Health check failed on $instance, aborting rollout"
        # Re-register healthy instances
        aws elb register-instances-with-load-balancer \
            --load-balancer-name my-lb \
            --instances $instance
        exit 1
    fi

    # Add back to load balancer
    aws elb register-instances-with-load-balancer \
        --load-balancer-name my-lb \
        --instances $instance

    echo "$instance deployed successfully"
done

echo "Rolling deployment complete"

Tradeoffs

Advantages:

• ✅ Zero downtime
• ✅ Gradual rollout (issues affect fewer instances)
• ✅ Automatic halt on health check failures
• ✅ Lower infrastructure cost (no extra instances)

Disadvantages:

• ❌ Requires multiple instances
• ❌ Mixed versions during rollout (must be compatible)
• ❌ Slower rollback (must roll forward or roll back each instance)
• ❌ Session affinity issues (if stateful)

---

Blue-Green Deployment

What It Is

Blue-green deployment maintains two identical production environments.

It is the preferred way to stage any deployment, even when we are doing rolling, we will blue/green individual rings.

One color serves traffic (active), while the other is idle (inactive).

Deploy to inactive color, test, then switch traffic to new active.

Environments:

Blue and Green, or 001, 002, 003 etc.

• active: Current production version, serving live traffic
• inactive: New version deployed, idle (or receiving test traffic)

Process:

1. Blue environment serves 100% production traffic
2. Deploy new version to Green environment
3. Run smoke tests against Green (0% production traffic)
4. Switch load balancer/DNS from Blue to Green (instant cutover)
5. Monitor Green with 100% production traffic
6. Blue becomes idle (ready for next deployment or instant rollback)

Characteristics:

• Zero downtime
• Instant traffic switch (seconds)
• Instant rollback (switch back to inactive)
• High infrastructure cost (2x resources)
• Requires infrastructure automation

When to Use

Best for:

• Instant rollback critical (high-risk deployments)
• Large artifacts or slow startup (can't afford multiple rolling updates)
• Database migrations (need to test migration fully before traffic switch)
• High-stakes releases (major version updates)
• Infrastructure as Code (can automate environment creation)

Not suitable for:

• License-constrained environments (requires 2x prod infrastructure).
• Most cloud supports pay-for-play, so does not increase costs if designed correctly
• Have to do special steps to support Stateful applications (dbs etc.)

Example Implementation

#!/bin/bash
# blue-green-deploy.sh

BLUE_ENV="myapp-blue"
GREEN_ENV="myapp-green"
LB_TARGET_GROUP_ARN="arn:aws:elasticloadbalancing:..."

# Current production is Blue
echo "Current production: $BLUE_ENV"

# Deploy to Green
echo "Deploying to $GREEN_ENV..."
terraform apply -var="environment=green" -var="version=v1.2.0"

# Wait for Green to be healthy
echo "Waiting for $GREEN_ENV health checks..."
aws elbv2 wait target-in-service \
    --target-group-arn $LB_TARGET_GROUP_ARN

# Run smoke tests against Green
echo "Running smoke tests on $GREEN_ENV..."
./smoke-tests.sh https://green.myapp.internal

if [ $? -ne 0 ]; then
    echo "Smoke tests failed, aborting deployment"
    exit 1
fi

# Switch traffic to Green
echo "Switching traffic to $GREEN_ENV..."
aws elbv2 modify-listener \
    --listener-arn $LISTENER_ARN \
    --default-actions Type=forward,TargetGroupArn=$GREEN_TARGET_GROUP_ARN

echo "Traffic switched to $GREEN_ENV"
echo "$BLUE_ENV is now idle (ready for rollback or next deployment)"

Rollback

Instant rollback:

# Switch traffic back to Blue
aws elbv2 modify-listener \
    --listener-arn $LISTENER_ARN \
    --default-actions Type=forward,TargetGroupArn=$BLUE_TARGET_GROUP_ARN

Rollback completes in seconds - just switch traffic back.

Tradeoffs

Advantages:

• ✅ Instant rollback (seconds)
• ✅ Zero downtime
• ✅ Test in production-like environment before traffic switch
• ✅ Clean separation (no mixed versions)

Disadvantages:

• ❌ Higher complixity cost (2x infrastructure running during deployment + load balancing)
• ❌ Database migrations complex (state transfers between Blue/Green)
• ❌ Requires infrastructure automation
• ❌ Some licenses make it double cost (hot swappable prod)

---

Canary Deployment

What It Is

Canary deployment routes a small percentage of traffic to the new version, monitors metrics, and gradually increases traffic if healthy.

Process:

1. Deploy new version alongside current version
2. Route 1-5% traffic to new version (canary)
3. Monitor canary metrics (errors, latency, business KPIs)
4. If healthy: Gradually increase traffic (10% → 25% → 50% → 100%)
5. If unhealthy: Route 0% traffic to canary (instant rollback)

Characteristics:

• Zero downtime
• Gradual, metrics-driven rollout
• Early warning with minimal blast radius (1-5% affected)
• Requires robust monitoring and metrics
• Requires traffic routing capability
• Medium infrastructure cost

When to Use

Best for:

• Need production validation (can't fully test in staging)
• Metrics-driven decisions (error rates, latency, business KPIs)
• Risk-averse organizations (gradual increases confidence)
• A/B testing infrastructure (already have traffic routing)
• Large user base (1% still significant sample size)

Not suitable for:

• Small user base (1% is too few users for meaningful metrics)
• Infrastructure without traffic routing capability
• Applications without good observability
• Breaking changes (can't coexist with old version)

Example Implementation

# canary-deployment.yaml (using Kubernetes)

apiVersion: v1
kind: Service
metadata:
  name: myapp
spec:
  selector:
    app: myapp
  ports:
    - port: 80

---
# Stable version (95% traffic)
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-stable
spec:
  replicas: 19  # 95% of traffic
  selector:
    matchLabels:
      app: myapp
      version: v1.1.0
  template:
    metadata:
      labels:
        app: myapp
        version: v1.1.0
    spec:
      containers:
      - name: myapp
        image: myapp:v1.1.0

---
# Canary version (5% traffic)
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-canary
spec:
  replicas: 1  # 5% of traffic
  selector:
    matchLabels:
      app: myapp
      version: v1.2.0
  template:
    metadata:
      labels:
        app: myapp
        version: v1.2.0
    spec:
      containers:
      - name: myapp
        image: myapp:v1.2.0

Automated progressive rollout:

# canary-controller.py

def canary_rollout():
    percentages = [5, 10, 25, 50, 100]

    for pct in percentages:
        print(f"Routing {pct}% traffic to canary...")
        update_traffic_split(canary_percent=pct)

        # Monitor for 15 minutes
        time.sleep(900)

        metrics = get_canary_metrics()

        if metrics['error_rate'] > THRESHOLD_ERROR_RATE:
            print("Error rate too high, rolling back")
            update_traffic_split(canary_percent=0)
            return FAILED

        if metrics['p95_latency'] > THRESHOLD_LATENCY:
            print("Latency too high, rolling back")
            update_traffic_split(canary_percent=0)
            return FAILED

        print(f"{pct}% canary healthy, proceeding")

    print("Canary fully rolled out")
    return SUCCESS

Metrics to Monitor

Technical metrics:

• Error rate (4xx, 5xx responses)
• P50, P95, P99 latency
• Request throughput
• Resource utilization (CPU, memory)

Business metrics:

• Conversion rate
• User engagement
• Revenue impact
• Customer complaints

Tradeoffs

Advantages:

• ✅ Minimal blast radius (1-5% affected initially)
• ✅ Production validation before full rollout
• ✅ Instant rollback (route 0% to canary)
• ✅ Metrics-driven confidence building

Disadvantages:

• ❌ Requires traffic routing infrastructure
• ❌ Requires robust observability
• ❌ Complex to implement
• ❌ Slower rollout (hours, not minutes)

---

Feature Flags with Deployment

What It Is

Feature flags decouple deployment (code reaches production) from release (features enabled for users).

Deploy code with features disabled, enable via runtime flags.

Process:

1. Deploy new code to production (features OFF via flags)
2. Gradually enable features for user segments:
3. Internal users (0.1%)
4. Early adopters (1%)
5. Standard users (10% → 50% → 100%)
6. Monitor metrics per enabled segment
7. Instant disable if issues detected (toggle flag OFF)

Characteristics:

• Zero downtime deployments
• Independent feature rollout per feature
• Instant feature disable (no redeployment)
• Gradual rollout per feature
• Enables A/B testing
• Requires feature flag infrastructure

When to Use

Best for:

• Continuous Deployment (CDe) pattern (required for automated production deployment)
• A/B testing (compare feature variants)
• Gradual rollouts (enable features progressively)
• Kill switches (instant disable capability)
• Beta programs (enable for specific users)

Not suitable for:

• Infrastructure changes (can't flag infrastructure)
• Database schema changes (flags don't help)
• Very simple applications (overhead not worth it)

Example Implementation

Feature flag service:

// featureflags/featureflags.go

package featureflags

type Service struct {
    client *flagd.Client
}

func (s *Service) IsEnabled(ctx context.Context, feature string, userID string) bool {
    // Check if feature is enabled for this user
    return s.client.BoolValue(ctx, feature, false, flagd.EvaluationContext{
        "userID": userID,
    })
}

Application code:

// handler.go

func (h *Handler) HandleRequest(w http.ResponseWriter, r *http.Request) {
    userID := getUserID(r)

    if h.flags.IsEnabled(r.Context(), "new-checkout-flow", userID) {
        // New feature
        h.handleNewCheckout(w, r)
    } else {
        // Old feature
        h.handleOldCheckout(w, r)
    }
}

Feature flag configuration:

# flags.yaml

new-checkout-flow:
  state: ENABLED
  variants:
    on: true
    off: false
  defaultVariant: off
  targeting:
    - if:
        - in:
          - userID
          - ["user-1", "user-2", "user-3"]  # Internal users
      variant: on
    - if:
        - startsWith:
          - email
          - "beta-"  # Beta users
      variant: on
    - if:
        - percentage:
          - flagKey: new-checkout-flow
          - 10  # 10% rollout
      variant: on

Progressive Rollout with Flags

Stage 12 (Release Toggling):

1. Deploy code to production (Stage 10) - flags OFF
2. Enable for internal users (0.1%)
3. Monitor metrics, if healthy: enable for 1%
4. Monitor metrics, if healthy: enable for 10%
5. Monitor metrics, if healthy: enable for 50%
6. Monitor metrics, if healthy: enable for 100%

Each step is independent of deployment - just toggle configuration.

Tradeoffs

Advantages:

• ✅ Decouple deployment from release
• ✅ Instant feature disable (no redeployment)
• ✅ Gradual rollout per feature
• ✅ A/B testing capability
• ✅ Beta programs (enable for specific users)

Disadvantages:

• ❌ Code complexity (if/else branches)
• ❌ Feature flag infrastructure required
• ❌ Technical debt (must remove old code paths)
• ❌ Testing complexity (all flag combinations)

---

Strategy Selection Framework

Decision Tree

Question 1: Can you tolerate any downtime?

• No → Rolling, Blue-Green, Canary, or Feature Flags
• Yes (< 30s) → Hot Deploy

Question 2: Do you need instant rollback?

• Yes → Blue-Green or Canary
• No → Rolling or Hot Deploy

Question 3: Do you have robust monitoring/metrics?

• Yes → Canary (metrics-driven)
• No → Blue-Green (instant switch)

Question 4: Do you need gradual feature rollout?

• Yes → Feature Flags (with any deployment strategy)
• No → Any strategy

Question 5: What's your infrastructure budget?

• Limited → Hot Deploy or Rolling
• Moderate → Canary or Feature Flags
• High → Blue-Green

Strategy Comparison

Strategy	Downtime	Rollback Speed	Complexity	Cost	Use Case
Hot Deploy	Brief	Fast (1-2 min)	Low	Low	Internal tools, batch jobs
Rolling	None	Medium (5 min)	Medium	Low	Standard web services
Blue-Green	None	Instant	Medium	High	High-risk, large deployments
Canary	None	Instant	High	Medium	Production validation needed
Feature Flags	None	Instant	High	Medium	Gradual rollouts, A/B testing

---

RA vs CDe Pattern Recommendations

Release Approval (RA) Pattern

Recommended strategies:

• Blue-Green: Manual approval at Stage 9, then instant switch to production
• Rolling: Manual approval at Stage 9, then gradual rollout

Why these work:

• Manual approval provides explicit go/no-go decision
• Clear cut-over point (before or after traffic switch)
• Aligns with manual approval workflow

Typical flow:

1. Deploy to Green (or first instances)
2. Test in production (or on subset)
3. Manual approval (Stage 9)
4. Switch traffic (Blue-Green) or continue rolling

Continuous Deployment (CDe) Pattern

Recommended strategies:

• Canary: Automated with gradual validation
• Feature Flags: Deploy continuously, release independently

Why these work:

• Automated progression (no manual approval)
• Metrics-driven decisions
• Gradual increases confidence
• Instant rollback on threshold breaches

Typical flow:

1. Deploy to production (automated)
2. Route 1% traffic (Canary) or deploy with flags OFF
3. Monitor metrics (automated)
4. Gradually increase (automated if metrics healthy)
5. Full rollout or instant rollback

CDe requires:

• Robust automated testing (Stages 5-6)
• Comprehensive monitoring and metrics
• Automated rollback triggers
• Feature flags (for independent release)

---

Implementation Considerations

Infrastructure Requirements

Hot Deploy:

• Minimal (single server, basic automation)

Rolling:

• Load balancer
• Multiple instances (≥ 2)
• Health check endpoints
• Orchestration (Kubernetes, AWS ECS, etc.)

Blue-Green:

• Infrastructure as Code (Terraform, CloudFormation)
• Load balancer with traffic switching
• 2x production capacity
• Automated environment provisioning

Canary:

• Traffic routing capability (service mesh, load balancer)
• Observability platform (Prometheus, Datadog)
• Automated metrics collection
• Rollout automation (Flagger, Argo Rollouts)

Feature Flags:

• Feature flag service (LaunchDarkly, Flagsmith, Unleash)
• Application integration
• Configuration management
• Flag lifecycle management

Monitoring Requirements

All strategies require:

• Health check endpoints (/health, /ready)
• Application metrics (errors, latency, throughput)
• Infrastructure metrics (CPU, memory, disk)
• Logging (structured, centralized)

Canary and Feature Flags additionally require:

• Per-version metrics (compare canary to stable)
• Business metrics (conversion, revenue)
• Automated alerting on threshold breaches
• Real-time dashboards

Rollback Procedures

Every deployment strategy must have documented rollback:

• Rollback triggers (when to rollback)
• Rollback steps (how to execute)
• Rollback time (how long it takes)
• Database rollback (if applicable)
• Verification (how to confirm rollback success)

---

Anti-Patterns

Anti-Pattern 1: No Rollback Plan

Problem: Deploy without defined rollback procedure

Impact: When issues arise, scramble to figure out how to recover

Solution: Document rollback procedure before deploying

Anti-Pattern 2: All-at-Once Deployments (Big Bang)

Problem: Deploy to all instances simultaneously

Impact: All users affected if deployment fails

Solution: Use gradual rollout (Rolling, Canary, Rings)

Anti-Pattern 3: Ignoring Canary Metrics

Problem: Roll out canary despite elevated error rates

Impact: Problems affect all users when fully rolled out

Solution: Automated rollback on threshold breaches

Anti-Pattern 4: Feature Flag Debt

Problem: Accumulating old feature flags, never removing

Impact: Code complexity, testing burden, technical debt

Solution: Remove flags after full rollout (set lifecycle policy)

Anti-Pattern 5: No Health Checks

Problem: Deploying without health check validation

Impact: Broken deployments serve traffic, users affected

Solution: Implement health checks, verify before adding to load balancer

---

Best Practices Summary

1. Match strategy to risk: Higher risk → More gradual rollout
2. Always have rollback: Document and test rollback procedures
3. Automate deployments: Reduce human error, increase consistency
4. Monitor actively: Watch metrics during and after deployment
5. Health checks required: Never serve traffic from unhealthy instances
6. Start simple: Hot Deploy → Rolling → Blue-Green → Canary → Feature Flags
7. CDe requires maturity: Comprehensive testing, monitoring, feature flags
8. RA for high-risk: Manual approval for critical systems
9. Gradual rollouts: Minimize blast radius, build confidence
10. Document everything: Runbooks, rollback procedures, decision criteria

---

Next Steps

• Deployment Rings - Progressive user group rollout pattern
• CD Model Stages 8-12 - See deployment in CD Model context
• Implementation Patterns - RA vs CDe pattern selection
• Environments Architecture - Deploy Agents and production environments

Quick Reference

Strategy Comparison

Strategy	Rollback Speed	Downtime	Complexity	Resource Cost
Hot Deploy	Fast (1-2 min)	Brief (< 30s)	Low	Low
Rolling	Fast (< 1 min)	None	Medium	Low
Blue-Green	Instant	None	Medium	High (2x)
Canary	Instant	None	High	Medium
Rings	Gradual	None	High	Medium

---

Tutorials | How-to Guides | Explanation | Reference

You are here: Explanation — understanding-oriented discussion that clarifies concepts.
