Unit of Flow

Home › Explanation › Continuous Delivery › Core Concepts › Unit Of Flow

Introduction

The Unit of Flow is a conceptual framework that divides Continuous Delivery into four discrete, interconnected components.

Understanding these components and their relationships is essential for implementing an effective CD Model.

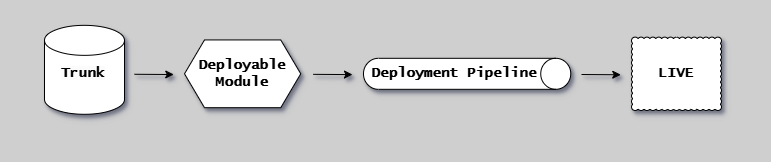

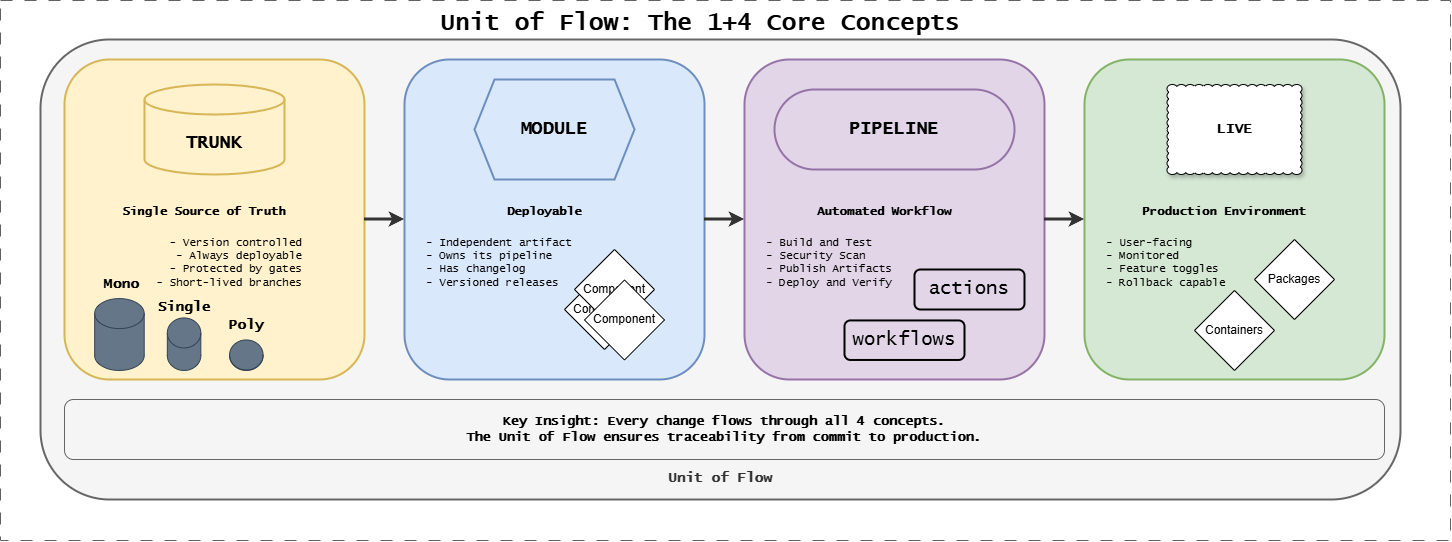

Unit of Flow Overview

These four components work together to enable the continuous flow of software from development through production:

  • Trunk: The version-controlled timeline where code lives
  • Deployable Module: The discrete body of work that is built, tested, and delivered
  • Deployment Pipeline: The automated process that validates and delivers changes
  • Live: The runtime environment where software serves users

The Four Components

Trunk

Trunk Legend

Definition: The conceptual container of Deployable Modules, representing the versioned timeline in which they exist.

Key Characteristics:

  • Implemented as a Git code repository
  • Follows Trunk-Based Development practices
  • Contains "everything as code" (application code, infrastructure, configuration, documentation)
  • The HEAD of trunk represents the only meaningful version of the code
  • All changes integrate to trunk frequently (at least daily)

Purpose:

  • Single source of truth for all code
  • Enables Continuous Integration
  • Provides version history and traceability
  • Supports parallel development without long-lived branches

Implementation:

  • Can be a single repository (polyrepo) containing one deployable module
  • Can be a monorepo containing multiple deployable modules
  • Always uses trunk-based development branching topology

See Trunk-Based Development for detailed practices.

Deployable Module

Deployable Module Legend

Definition: The discrete body of work that is built, tested, and delivered as a single unit.

Key Characteristics:

  • Composed of one or more immutable artifacts
  • Has its own version number
  • Can progress through all CD Model stages independently
  • Lowest level of granularity for repository decomposition

Types:

Runtime Systems:

  • Microservices
  • Modular monoliths
  • Data pipelines
  • Web applications
  • Store apps
  • Shared infrastructure

Versioned Components:

  • Container images
  • npm/NuGet/pip packages
  • CLI tools and executables
  • Automation modules
  • Shared libraries

Purpose:

  • Defines the scope of what gets built and deployed together
  • Determines versioning granularity
  • Establishes deployment boundaries
  • Enables independent testing and deployment

See Deployable Modules for detailed explanation.

Deployment Pipeline

Deployment Pipeline Legend

Definition: The automated, repeatable process that takes code from commit to production.

Key Characteristics:

  • Triggered by changes to trunk
  • Implements the 12 stages of the CD Model
  • Provides automated quality gates
  • Generates immutable artifacts
  • Collects evidence and metrics

Purpose:

  • Automate build, test, and deployment
  • Provide fast, consistent feedback
  • Enforce quality standards
  • Enable continuous delivery
  • Maintain audit trail

The 12 Stages:

  1. Authoring Changes
  2. Pre-commit
  3. Merge Request
  4. Commit
  5. Acceptance Testing
  6. Extended Testing
  7. Exploration
  8. Start Release
  9. Release Approval
  10. Production Deployment
  11. Live
  12. Release Toggling

See CD Model Overview for the complete 12-stage framework.

Live

Live Legend

Definition: The runtime environment where deployed software serves end users.

Key Characteristics:

  • Production environment with real user traffic
  • Continuous monitoring and observability
  • Feature flags for runtime control
  • Incident response procedures
  • Performance and business metrics

Purpose:

  • Deliver business value to users
  • Monitor software behavior in production
  • Enable gradual rollouts
  • Support fast rollback if needed
  • Collect production metrics

Stages:

  • Stage 11 (Live): Monitoring and validation
  • Stage 12 (Release Toggling): Feature flag management

Relationships

Unit of Flow Relationships

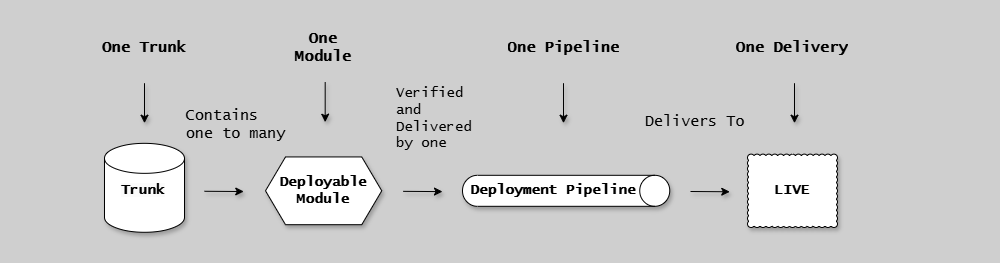

This diagram illustrates how the four components relate to each other:

Trunk Contains Deployable Modules

A single trunk can contain:

  • One deployable module (polyrepo pattern)
  • Multiple deployable modules (monorepo pattern)

Polyrepo Example:

api-service/              # Trunk (repo)
├── src/                  # Deployable Module: API Service
├── infrastructure/
└── .github/workflows/    # Deployment Pipeline

Monorepo Example:

platform/                 # Trunk (repo)
├── services/
│   ├── api/             # Deployable Module 1
│   ├── web/             # Deployable Module 2
│   └── worker/          # Deployable Module 3
└── shared/              # Supporting code (not a deployable module)

Each Deployable Module Has a Deployment Pipeline

Every deployable module has its own automated pipeline:

  • Polyrepo: One pipeline per repository
  • Monorepo: Multiple pipelines in one repository (one per deployable module)

The pipeline is triggered when changes affect its deployable module.

Deployment Pipeline Delivers to Live

The pipeline validates changes and delivers immutable artifacts to the Live environment

Live Feedback Influences Trunk

Production metrics and incidents create feedback loops:

  • Monitoring alerts trigger investigations
  • Performance issues drive optimization
  • Feature flag data informs product decisions
  • Incidents result in fixes committed to trunk

Integration with CD Model

The Unit of Flow maps directly to CD Model stages:

Trunk-Focused Stages:

  • Stage 1 (Authoring): Work happens on topic branches in trunk
  • Stage 3 (Merge Request): Changes integrated to trunk via PR
  • Stage 4 (Commit): Trunk commits trigger pipelines

Deployable Module-Focused Stages:

  • Stage 4 (Commit): Build artifacts for the deployable module
  • Stage 5 (Acceptance Testing): Validate the deployable module
  • Stage 8 (Start Release): Create release candidate for the deployable module

Deployment Pipeline-Focused Stages:

  • All 12 stages are implemented by the deployment pipeline
  • Pipeline orchestrates progression through stages
  • Pipeline collects evidence at each stage

Live-Focused Stages:

  • Stage 10 (Production Deployment): Deploy to live environment
  • Stage 11 (Live): Monitor live environment
  • Stage 12 (Release Toggling): Control features in live environment

Benefits of the Unit of Flow Model

Clear Boundaries:

  • Each component has a specific purpose
  • Responsibilities are well-defined
  • Easier to understand and implement

Flexibility:

  • Polyrepo or monorepo
  • Different versioning strategies
  • Multiple deployment patterns
  • Adaptable to organization size

Traceability:

  • Code → Trunk commits
  • Commits → Deployable modules
  • Units → Pipeline executions
  • Pipelines → Live deployments

Independence:

  • Deployable modules can evolve independently
  • Pipelines validate in isolation
  • Deployments don't block each other

Scalability:

  • Add deployable modules without disrupting existing ones
  • Parallel pipeline execution
  • Independent release cadences

Common Patterns

Single Service Pattern (Polyrepo)

Mermaid diagram

Use when:

  • Service is independent
  • Team owns entire service
  • Clear service boundaries

Multi-Service Platform (Monorepo)

Mermaid diagram

Use when:

  • Services share code heavily
  • Need atomic cross-service changes
  • Small to medium team size

Microservices Architecture (Polyrepo)

Mermaid diagram

Use when:

  • Services are loosely coupled
  • Multiple teams with separate ownership
  • Independent deployment cadences

Summary

The Unit of Flow provides a mental model for Continuous Delivery:

The Four Components:

  1. Trunk: Where code lives (Git repository)
  2. Deployable Module: What gets built and deployed
  3. Deployment Pipeline: How code reaches production (12 stages)
  4. Live: Where software runs in production

Key Relationships:

  • Trunk contains one or more deployable modules
  • Each deployable module has its own deployment pipeline
  • Pipelines deliver artifacts to live environments
  • Live environments provide feedback to trunk

Integration:

  • Maps to CD Model stages 1-12
  • Supports both polyrepo and monorepo patterns
  • Enables independent and coordinated releases
  • Provides clear traceability and boundaries
