Deployable Modules

Home › Explanation › Continuous Delivery › Core Concepts › Deployable Modules

Introduction

A Deployable Module is the fundamental building block of Continuous Delivery. It represents the discrete body of work that is built, tested, and delivered as a cohesive whole through the CD Model's 12 stages.

Understanding deployable modules is critical for:

  • Defining the scope of what gets built and deployed together
  • Determining versioning and release granularity
  • Establishing clear ownership boundaries
  • Enabling independent testing and deployment

Deployable Module Legend

This diagram shows the deployable module notation used throughout CD Model visualizations.

Definition

Deployable Module: The discrete body of work that is built, tested, and delivered.

Key Characteristics:

  • Composed of one or more immutable artifacts
  • Has its own version number
  • Progresses through all CD Model stages independently
  • Can be deployed without horizontally testing with other units
  • Lowest level of granularity for repository decomposition

What a Deployable Module Is NOT:

  • Not arbitrary code that happens to be in a repository
  • Not a feature or user story
  • Not a module or package within a larger system (unless independently deployable)

Types of Deployable Modules

Deployable modules fall into two primary categories, each with different characteristics and versioning strategies.

Runtime Systems

Runtime systems are services, applications, or systems that run continuously to serve users or process data.

Examples:

  • Microservices: Independent services in a distributed architecture
  • Modular Monoliths: Single deployable application with internal modularity
  • Web Applications: User-facing web apps
  • Data Pipelines: ETL/ELT processing systems
  • Background Workers: Async job processors
  • APIs: REST/GraphQL/gRPC services
  • Micro Applications: Small, focused applications
  • Store Apps: Mobile or desktop applications
  • Shared Infrastructure: Common platform services

Characteristics:

  • Continuously running in production
  • Serve real-time user requests or process data
  • Typically versioned with CalVer or Release Number
  • Usually "Software as a Service" (SaaS) model
  • Only one version active in production at a time

Deployment Pattern:

  • Deploy to production environment
  • Replace previous version
  • Monitor runtime behavior
  • Support single active version

Versioned Components

Versioned components are libraries, tools, or containers consumed by other systems.

Examples:

  • Container Images: Docker images for applications
  • npm Packages: JavaScript/TypeScript libraries
  • NuGet Packages: .NET libraries
  • pip Packages: Python libraries
  • Maven/Gradle Artifacts: Java libraries
  • Go Modules: Go libraries
  • CLI Tools: Command-line utilities
  • PowerShell/Bash Modules: Shell automation
  • Contract Packages: API contracts/schemas
  • Automation Modules: Reusable automation code

Characteristics:

  • Consumed by other systems via dependency management
  • Multiple versions exist simultaneously "in the wild"
  • Typically versioned with Semantic Versioning (SemVer)
  • "Multiple Releases in the Wild" model
  • Consumers control which version they use

Deployment Pattern:

  • Publish to artifact registry (npm, NuGet, Docker Hub)
  • Multiple versions available simultaneously
  • Consumers upgrade at their own pace
  • Must maintain backward compatibility or communicate breaking changes

Versioning Strategies

Deployable modules must be versioned to enable traceability, rollback, and dependency management.

Version Number Format

Note

Even though we define quite complex numbers here, for almost all usages we only use the 3 first parts Major.Minor.Revision

We use a extensible four-part version number:

Major.Minor.Revision.Patch[-informational]

Example: 1.2.3.4-rc1

  • Major: 1
  • Minor: 2
  • Revision: 3
  • Patch: 4 (commit count from branch point - for release branching - 0 for main)
  • Informational: rc1 (release candidate 1)

Non-used positions default to zero (e.g., 1.2 = 1.2.0.0).

Versioning Schemes by Type

The versioning scheme depends on the deployable module type and distribution model.

Implicit Versioning:

  • Use for: Internal supporting modules in monorepo
  • Format: No explicit version number (uses commit SHA)
  • Example: Shared utilities library in monorepo
  • Cost: Lowest maintenance

CalVer (Calendar Versioning):

  • Use for: SaaS runtime systems
  • Format: YYYY.MMDD.HHMM.Patch
  • Example: 2024.1115.2030.0 (Nov 15, 2024, 20:30, main branch commit)
  • Cost: Low maintenance (automated)
  • Benefit: Easy to identify when deployed

Manual Semantic Versioning:

  • Use for: SaaS systems with human calculated major and minor.
  • Benefit: Communicates breaking changes vs enhancements
  • Format: Fixed.Fixed.Revision.Patch
  • Example: 1.5.1234.0 (Major=1, Minor=5, Revision=1234, main branch commit)
  • Cost: Low to medium maintenance (still need to control major and minor, but they are fixed in configration)
  • Benefit: Easy to implement
  • Drawback: Hard to calculate manually -> High chance of semver not be used correctly

Automated Semantic Versioning (SemVer):

  • Use for: Versioned components, libraries, multi-release systems
  • Benefit: Communicates breaking changes vs enhancements
  • Format: Major.Minor.Revision.Patch
  • Example: 2.3.12.0
  • Cost: Higher complexity (requires semantic change logs etc.)
  • MAJOR: Breaking changes (incompatible API changes)
  • MINOR: New features (backward-compatible)
  • Revision: Patches on release branches
  • Benefit: Higher chance of reliable change logs and correct semver bumping.
  • Drawback: Complex to implement, requires conventional commits and module maps

API Versioning:

  • Use for: Runtime APIs (REST, GraphQL, gRPC)
  • Deployable Module Version: Uses CalVer or Release Number (tracks with the service)
  • API Interface Version: Separate version (v1, v2, v3)
  • Example: API service version 2024.1115.2035.0 is contracted to be compatible with API interfaces v1, v2, v3
  • Purpose: Maintain multiple API versions in single service for backward compatibility

Patch Number

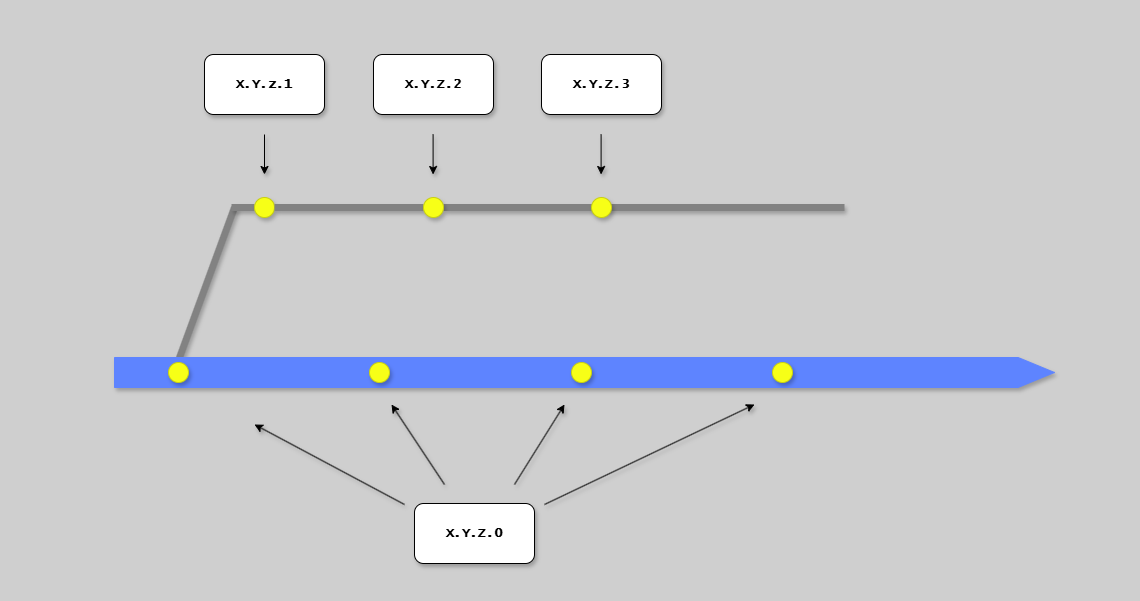

Versioning Patch

The Patch number tracks commits on release branches:

  • Main branch commits: patch = 0
  • Release branch commits: patch = count of commits since branch point
  • First release branch commit: patch = 1

Git command:

# Get patch number on release branch
git rev-list main.. --count

Choosing a Versioning Strategy

Deployable Module Type Distribution Model Versioning Strategy
Microservice SaaS (single version) CalVer or SemVer
Web Application SaaS (single version) CalVer or SemVer
CLI Tool Multi-release (distributed) SemVer
npm Package Multi-release (distributed) SemVer
Container Image Multi-release (consumed) SemVer
Docker Base Image Multi-release (consumed) SemVer
Internal Monorepo Module Not distributed Implicit
REST API (service) SaaS CalVer
REST API (interface) Multi-version support API (v1, v2, v3)

Immutable Artifacts

Deployable modules are built into immutable artifacts that progress through the pipeline.

What is an Immutable Artifact?

Definition: A versioned, unchangeable output from the build process.

Key Properties:

  • Built once in Stage 4 (Commit)
  • Never modified after creation
  • Same artifact deployed to all environments
  • Uniquely identified by version number and checksum
  • Stored in artifact registry

Why Immutability Matters

Consistency:

  • What you test is what you deploy
  • No "works on my machine" issues
  • Eliminates configuration drift

Traceability:

  • Exact artifact version in each environment
  • Can correlate issues to specific build
  • Enables accurate rollback

Security:

  • Signed artifacts prove integrity
  • Tampering is detectable
  • Audit trail from build to deployment

Compliance:

  • Required for regulated industries
  • Satisfies evidence requirements
  • Supports change control processes

Artifact Types

Container Images:

registry.example.com/api-service:1.2.3.4
  • Built in Stage 4
  • Scanned for vulnerabilities (Trivy)
  • Deployed to all environments unchanged

Application Packages:

api-service-1.2.3.4.zip
api-service-1.2.3.4.tar.gz
  • Compressed application bundle
  • Includes application code and dependencies
  • Excludes environment-specific configuration

Library Packages:

@company/shared-utils@1.2.3
company.shared-utils.1.2.3.nupkg
  • Published to package registry
  • Consumed via dependency management
  • Multiple versions available simultaneously

Configuration vs Artifacts

What's IN the artifact:

  • Application code
  • Application dependencies
  • Default configuration structure
  • Static assets

What's NOT in the artifact (injected at deployment):

  • Database connection strings
  • API keys and secrets
  • Environment-specific URLs
  • Feature flag states

This separation enables the same artifact to be deployed to multiple environments with environment-specific configuration.

Dependency Management

Deployable modules often depend on other modules (libraries), but can only depend on other deployable modules (services, APIs) via pinning and stitching.

Internal Dependencies (Monorepo)

Implicit Versioning:

monorepo/
├── services/
│   └── api/              # Deployable Module 1
│       └── depends on shared/models
└── shared/
    └── models/           # Not a deployable module (implicit version)

Characteristics:

  • Supporting code doesn't have its own version
  • Version is implied by the deployable module it's built with
  • Changes trigger rebuild of dependent deployable modules
  • Simpler but requires monorepo

External Dependencies (Polyrepo or Published Libraries)

Explicit Versioning:

# package.json
dependencies:
  "@company/shared-models": "^2.3.0"  # SemVer range

Characteristics:

  • Dependencies have explicit versions
  • Consumers control which version they use
  • Breaking changes require major version bump
  • Enables gradual migration

Dependency Patterns

Pin to Specific Versions (Recommended for Production):

{
  "dependencies": {
    "express": "4.18.2",
    "@company/auth": "1.2.3"
  }
}

Benefits: Reproducible builds, no unexpected updates Tradeoff: Manual updates required

Use Version Ranges (Caution):

{
  "dependencies": {
    "express": "^4.18.0",
    "@company/auth": "~1.2.0"
  }
}

Benefits: Automatic patch updates Tradeoff: Potential for unexpected changes

Dependency Updates

Automated Monitoring:

  • Use Dependabot to detect vulnerable dependencies
  • Automated PRs for security updates
  • Regular dependency audits

Update Strategy:

  1. Dependabot creates PR with updated dependency
  2. Automated tests run in Stage 3 (Merge Request)
  3. If tests pass, merge and deploy
  4. If tests fail, investigate and fix

See Security for dependency scanning with Trivy and Dependabot.

Granularity: Choosing Deployable Module Boundaries

Defining the right boundaries for deployable modules is a critical architectural decision.

Too Coarse (Too Few Deployable Modules)

Problem: Large monolithic deployable modules

Issues:

  • Long build and test times
  • All changes bundled together
  • Difficult to rollback specific changes
  • Team coordination bottlenecks
  • Slow deployment cycles

Example:

entire-platform/   # Single deployable module
├── api/
├── web/
├── worker/
└── admin/

All changes deploy together, even unrelated ones.

Too Fine (Too Many Deployable Modules)

Problem: Over-segmentation into many tiny deployable modules

Issues:

  • Complex dependency management
  • Version compatibility challenges
  • Coordination overhead across units
  • Increased operational complexity
  • Difficult to make cross-cutting changes

Example:

user-service/          # Deployable module
user-service-models/   # Deployable module
user-service-client/   # Deployable module
user-service-worker/   # Deployable module

Simple user service split into 4 units requiring coordination.

Right Balance

Goal: Deployable modules that can be independently developed, tested, and deployed

Good Boundaries:

  • Clear service/module responsibilities
  • Minimal coupling with other units
  • Can be tested in isolation (Stage 5)
  • Can deploy without other units
  • Owned by a single team

Example:

api-service/      # Deployable module (user-facing API)
worker-service/   # Deployable module (async processing)
admin-app/        # Deployable module (admin UI)
shared-lib/       # Deployable module (published library)

Each unit is independently deployable with clear boundaries.

Decision Factors

Split into separate deployable modules when:

  • Services have different release cadences
  • Teams want independent deployment
  • Clear service boundaries exist
  • Services scale independently
  • Different technology stacks

Keep as one deployable module when:

  • Code changes together frequently
  • Shared codebase makes sense
  • Small team size
  • Atomic deployments desired
  • Tight coupling exists

Deployable Modules in CD Model Stages

Stage 4 (Commit): Build Artifacts

When a trunk commit affects a deployable module:

  1. Pipeline detects which deployable modules changed
  2. Build immutable artifacts for affected units
  3. Run unit and integration tests
  4. Publish artifacts to registry
  5. Tag with version number

Stage 5 (Acceptance Testing): Validate in PLTE

Each deployable module is tested independently:

  • Deploy to PLTE environment
  • Run acceptance tests for this unit
  • Validate IV (installation), OV (operation), PV (performance)
  • Collect test evidence

Stage 8 (Start Release): Create Release Candidate

For each deployable module being released:

  • Identify version to release
  • Create release branch or tag (RA pattern)
  • Or deploy directly from trunk (CDE pattern)
  • Generate release notes

Stage 10 (Production Deployment): Deploy to Live

Deploy the immutable artifact:

  • Pull artifact from registry (no rebuild)
  • Deploy to production environment
  • Inject environment-specific configuration
  • Monitor deployment success

Summary

Deployable modules are the fundamental building blocks of Continuous Delivery:

Definition:

  • Discrete body of work built, tested, and delivered together
  • Composed of immutable artifacts
  • Has its own version number
  • Progresses through CD Model stages independently

Types:

  • Runtime Systems: Services, apps (SaaS model, CalVer/Release Number)
  • Versioned Components: Libraries, tools (Multi-release model, SemVer)

Versioning:

  • Implicit: Internal monorepo modules
  • CalVer: SaaS runtime systems
  • Release Number: SaaS with explicit releases
  • SemVer: Libraries and multi-release systems
  • API Versioning: Runtime APIs

Key Principles:

  • Build once, deploy many times (immutability)
  • Same artifact across all environments
  • Configuration injected at deployment time
  • Dependencies explicitly versioned (polyrepo) or implicit (monorepo)
  • Boundaries enable independent development and deployment

Next Steps

References

Internal Documentation

External Standards

Tutorials | How-to Guides | Explanation | Reference

You are here: Explanation — understanding-oriented discussion that clarifies concepts.
