CD Model Variants

Introduction

The CD Model can be adapted to different contexts through two primary variation points.

Understanding these variants helps you configure your CD implementation for your regulatory requirements, risk profile, team size, and organizational maturity.

The Two Variation Points

1. Merge Request (Stage 3): How changes are integrated into the main branch
2. Release Approval (Stage 9): How changes are approved for production deployment

These two dimensions combine independently, creating multiple valid configurations.

Why Variants Exist

• Regulated systems require extensive validation, audit trails, and formal approvals
• Small teams (1-2 developers) cannot effectively utilize pull request workflows
• Internal tools benefit from rapid iteration and minimal overhead
• High-velocity teams use merge queues to prevent dirty HEADs

Merge Request Variants

The Merge Request stage (Stage 3) controls how changes are integrated into the main branch.

1. Topic Branches with Pull Requests (Default)

Workflow: Create topic branch → commit changes → create PR → peer review + CI → merge to trunk

Advantages:

• Formal peer review with documented approval
• Automated checks gate integration
• Clear audit trail
• Supports regulatory compliance

Disadvantages:

• Slower feedback (minutes to hours)
• Potential for stale branches
• Overhead for very small teams

Best for: Teams of 3+, regulated environments.

2. Direct-to-Trunk Commits

Workflow: Make changes locally → pre-commit checks → push to trunk → CI validates → peer review deferred to Stage 9

Advantages:

• Fastest feedback (minutes)
• Minimal ceremony
• Works for solo/pair programming

Disadvantages:

• No pre-integration peer review
• Peer review batched at release time
• Higher risk of dirty trunk HEADs

Best for: Very small teams (1-2), internal tools, pair programming.

3. Integration/Merge Queue (Advanced)

Workflow: Create PR → pass review → add to queue → queue rebases onto trunk → CI runs → auto-merge if pass

Advantages:

• Prevents dirty HEAD (trunk always green)
• Parallelizes validation, serializes merges
• Scales to high-velocity teams

Disadvantages:

• Requires advanced tooling (GitHub Merge Queue, Bors)
• Adds merge latency
• Can bottleneck under heavy load

Best for: Large teams, monorepos, critical trunk stability.

Choosing Your Merge Strategy

Release Approval Variants

The Release Approval stage (Stage 9) controls how changes are approved for production.

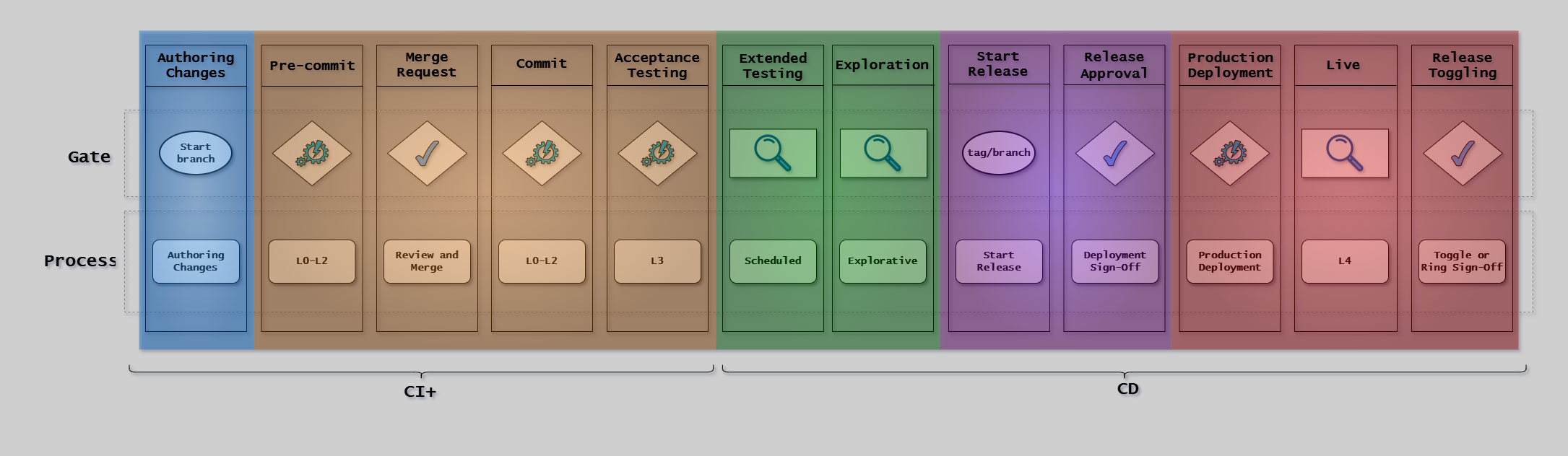

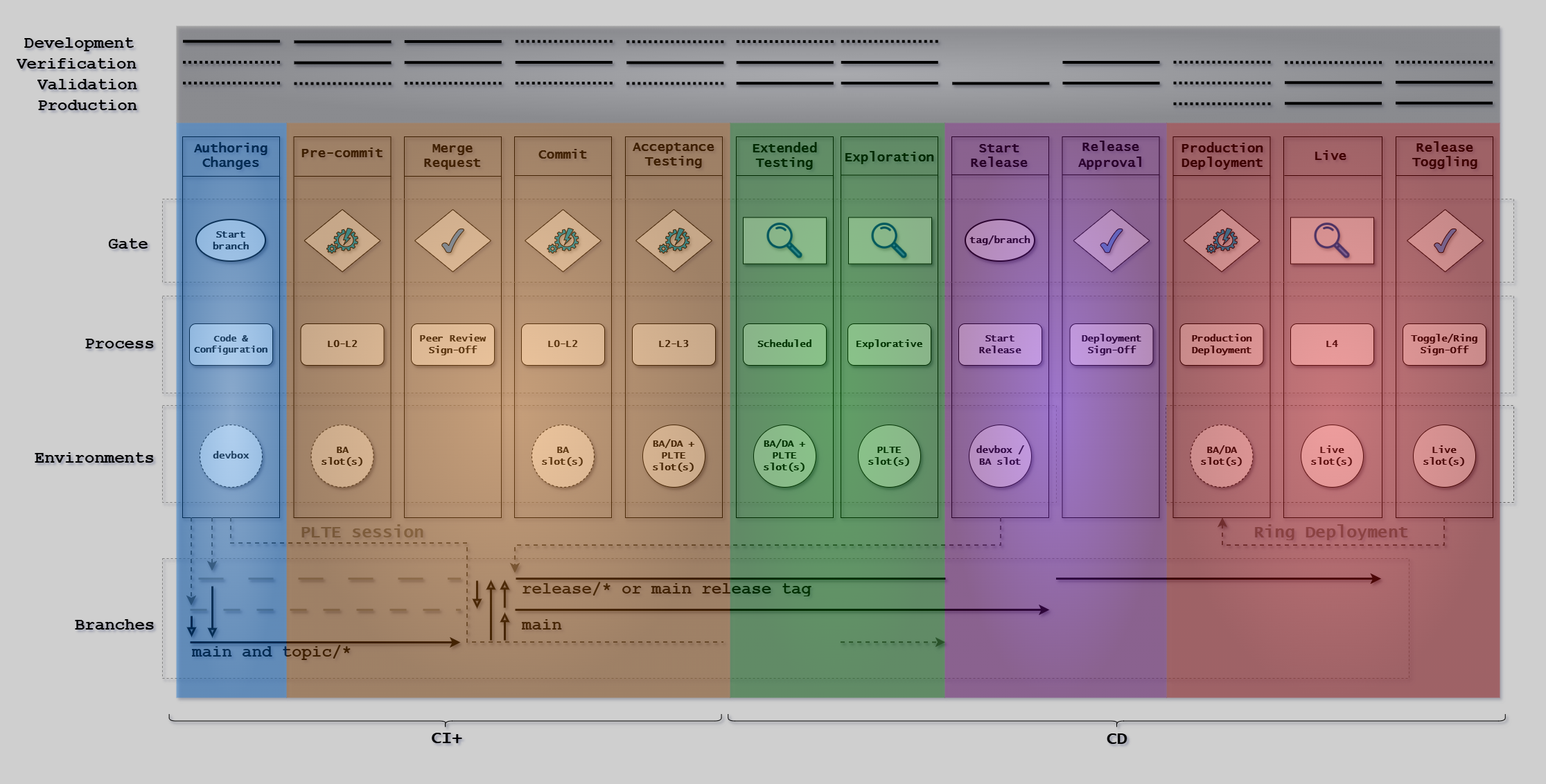

Release Approval (RA) Pattern

Best for: Regulated environments, high-risk applications, audit requirements.

Key characteristics:

• Manual approval at Stage 9 by release manager
• Comprehensive audit trail emphasized
• Formal sign-off documented
• Two approval gates: Stage 3 (peer) + Stage 9 (release manager)

When to use:

• Regulatory oversight (FDA, financial regulations)
• Critical systems (safety, health, business-critical)
• Compliance requirements for documented approvals
• High consequence of failure

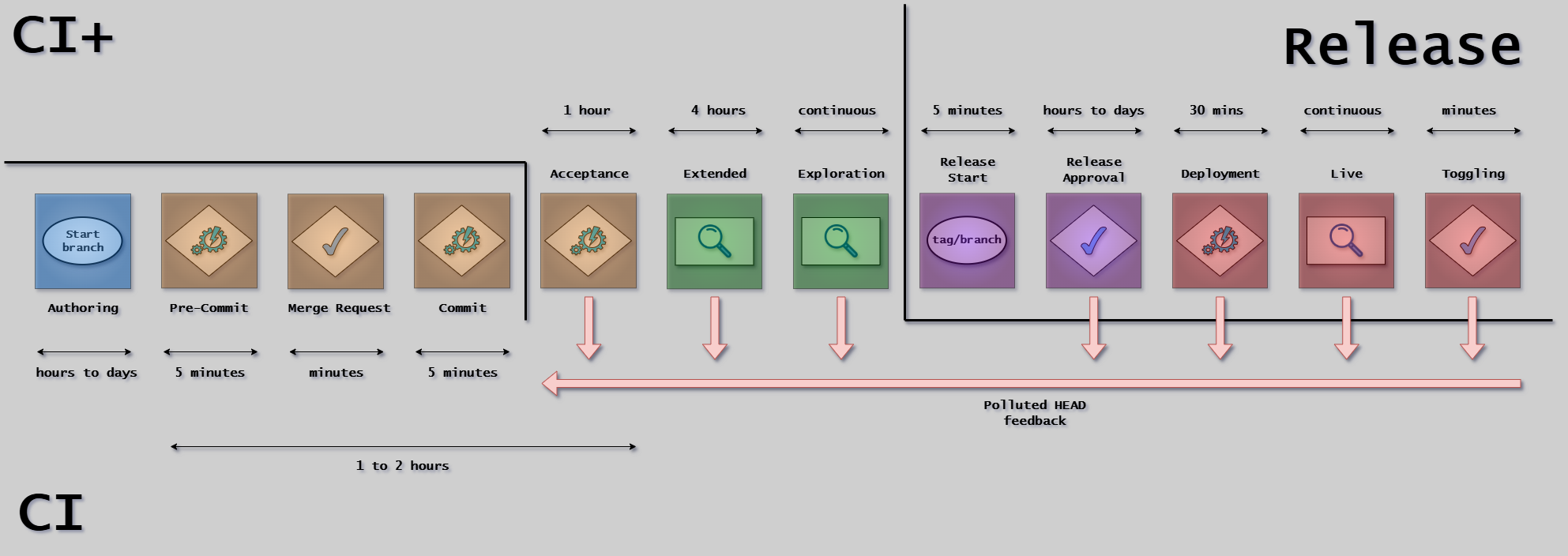

Cycle time: 1-2 weeks (constrained by authoring and approval queue)

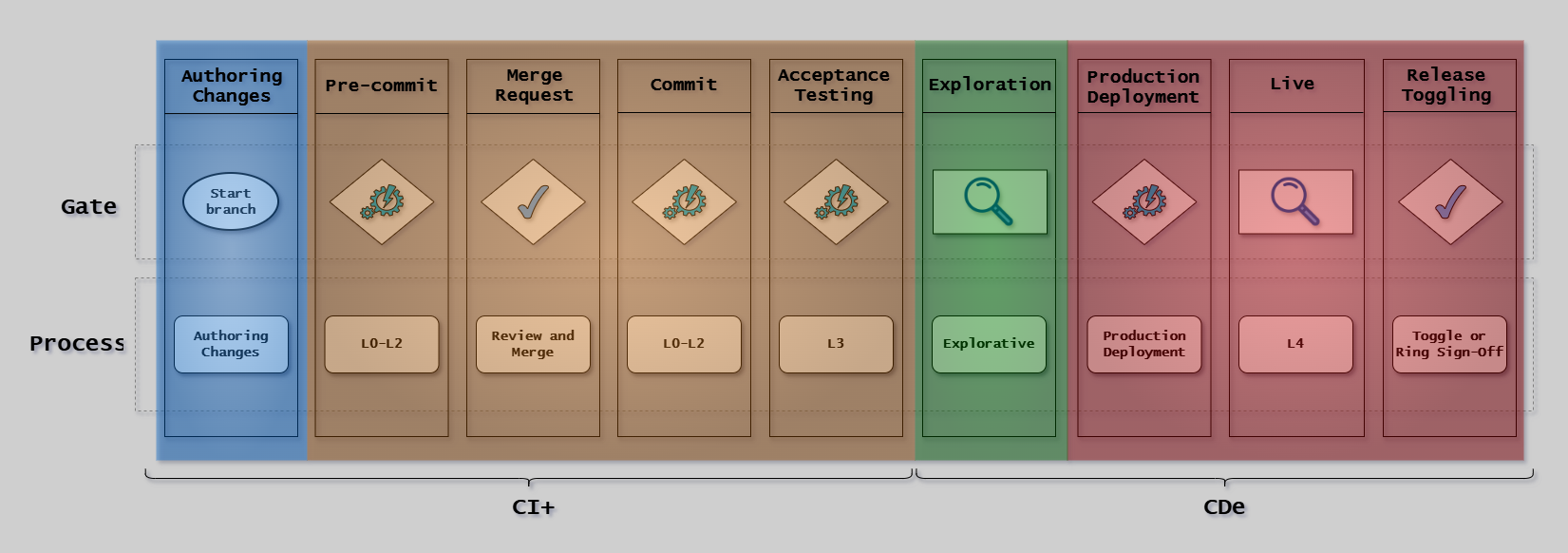

Continuous Deployment (CDe) Pattern

Best for: Non-regulated systems, internal tools, mature DevOps practices.

Key characteristics:

• Automated approval at Stage 9 (quality gates)
• Feature flags provide runtime control
• Stage 3 serves as both first and second-level approval
• Changes flow to production automatically if gates pass

When to use:

• Fully automated verification in place
• Non-regulated deployment
• Internal tools with tolerant users
• Mature test coverage
• Feature flags available
• Business value from rapid deployment

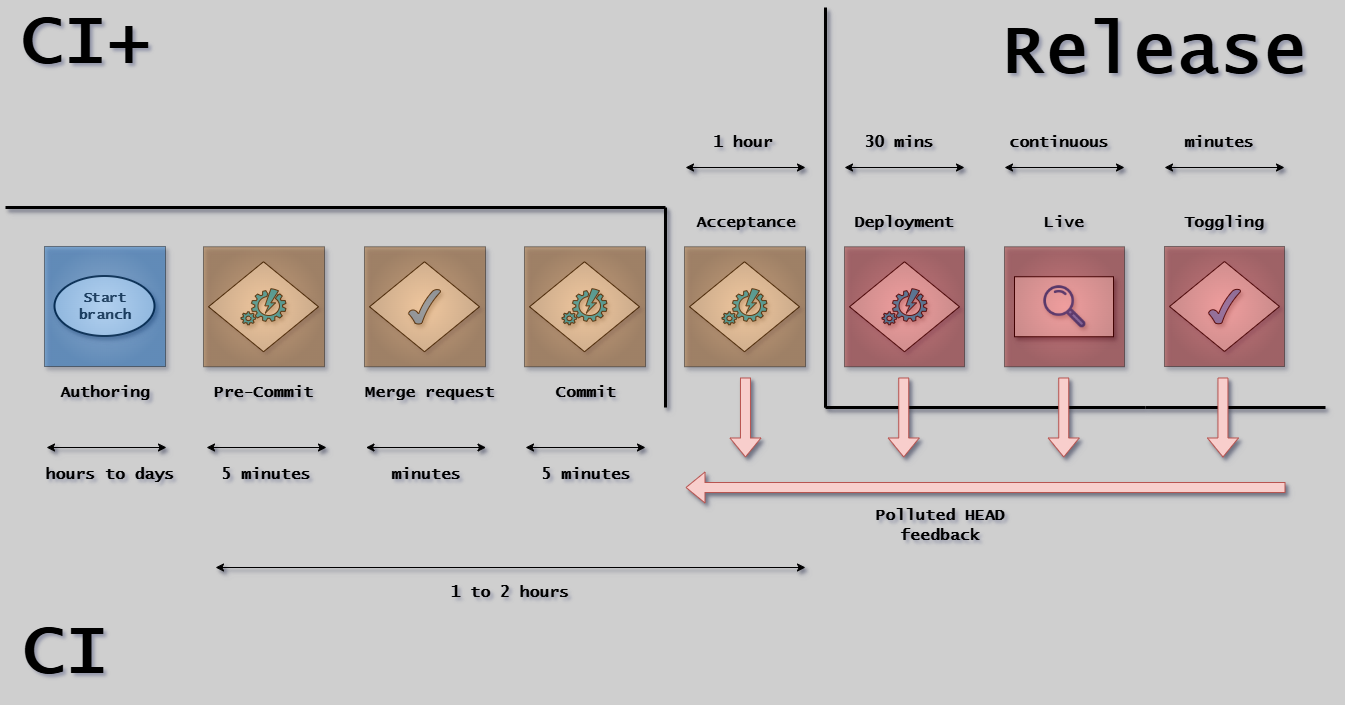

Cycle time: Under 1 hour for small changes

Note: CDe can work in regulated environments if features deploy disabled (flag OFF) and Stage 12 (Release Toggling) controls when features go live.

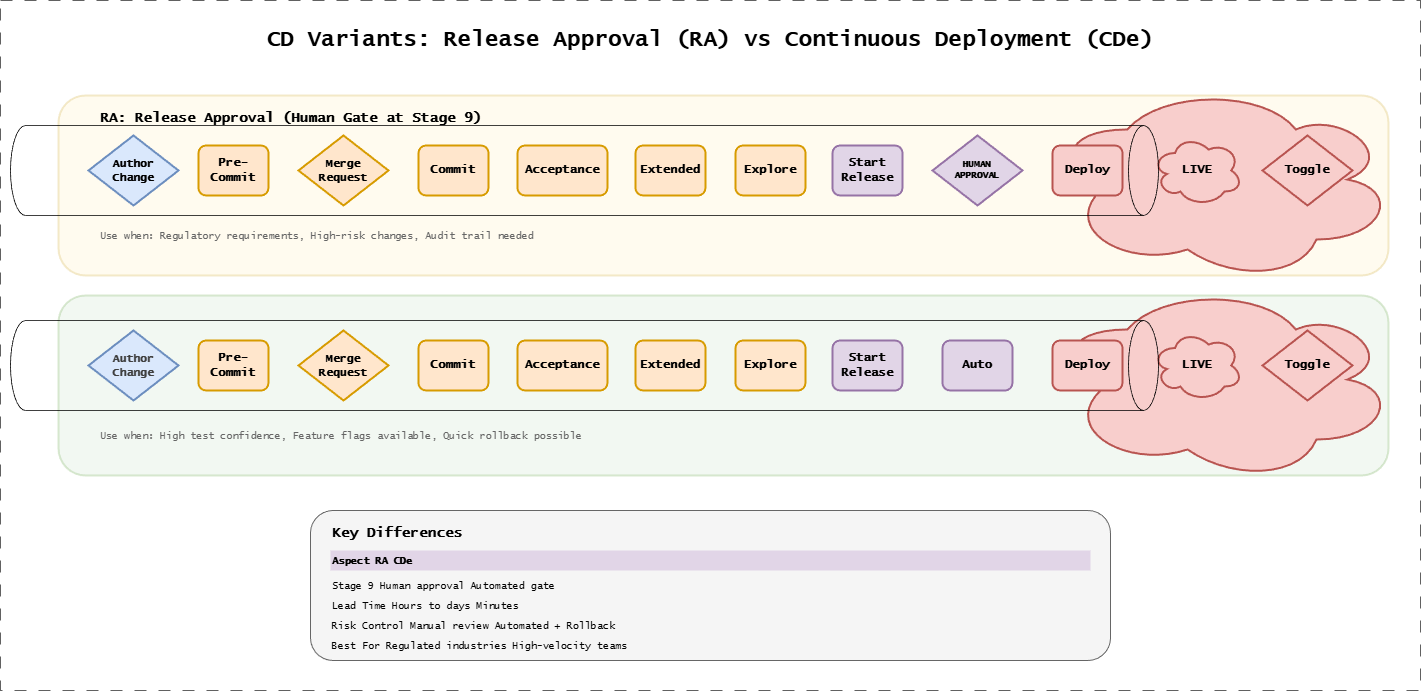

Key Differences

Choosing Your Configuration

Decision Tree

Configuration Matrix

Factors to Consider

Risk: Impact of production defects, detection speed, rollback cost

Team: Size (1-2 vs 3+ vs large), distribution, skill level

Maturity: Test automation, monitoring, incident response

Regulatory: Evidence requirements, approval needs, audit frequency

Business: Time-to-market pressure, user tolerance, support capabilities

Hybrid Approaches

By system type:

• Live products (PR + RA): Customer-facing, critical
• Internal tools (Direct + CDe): Developer tools, dashboards

By maturity:

1. Start with PR + RA (full oversight)
2. Build automation (improve coverage, monitoring)
3. Transition to PR + CDe (remove Stage 9 manual gate)
4. Advanced: Queue + CDe (high-velocity, high-confidence)

Summary

Merge Variants

Release Variants

References

• Overview - CD Model introduction
• The 12 Stages - Stage details
• Compliance - Signoffs and evidence
• Trunk-Based Development - Branching strategy
