The 12 Stages
The CD Model consists of 12 stages that guide software from code authoring to production operation. This article provides a compact reference for each stage.
Development Stages
Stages 1-7 cover code authoring through comprehensive verification, emphasizing shift-left practices and rapid feedback.
Stage 1: Authoring
Purpose: Create code, configuration, and requirements on local topic branches.
Key Activities:

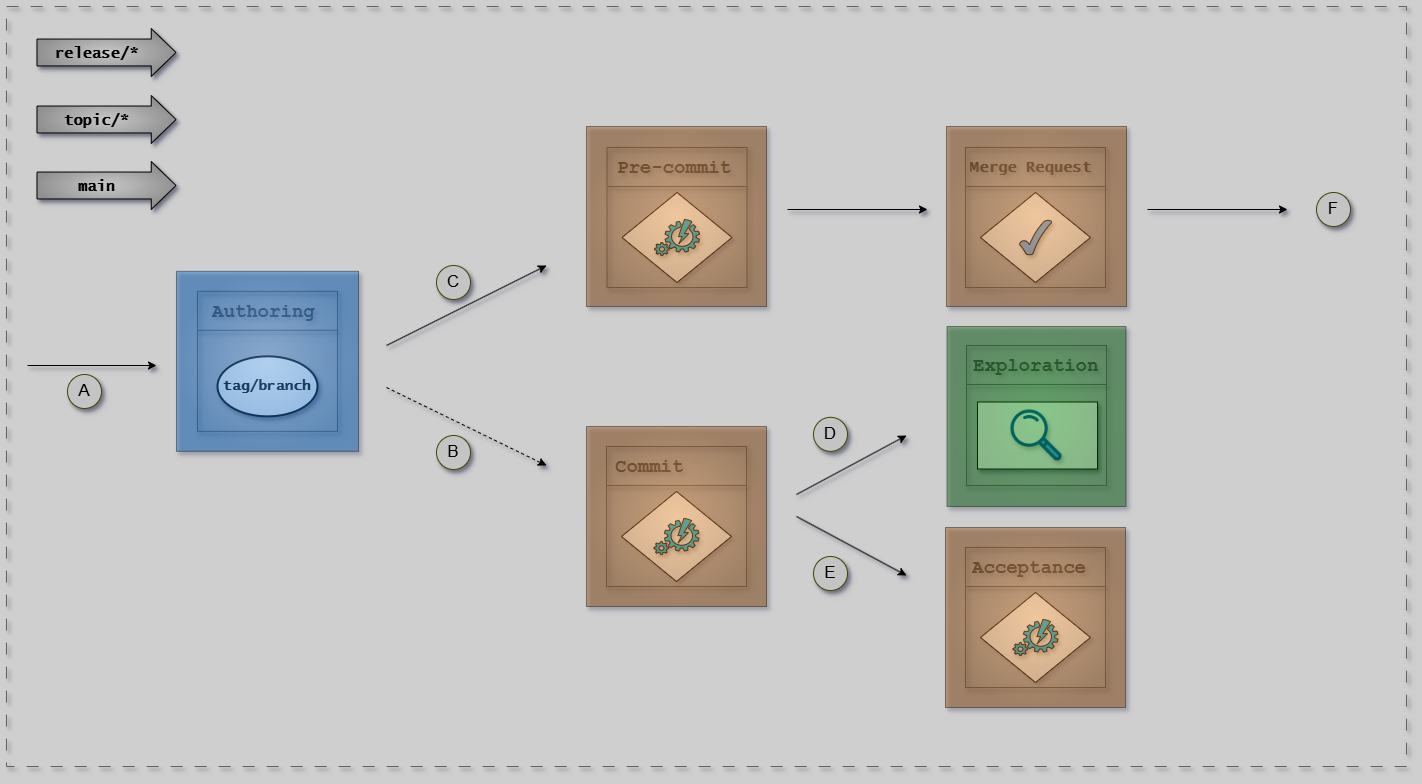

- Create topic branch from trunk HEAD
- Develop features, fixes, or documentation
- Collaborate on requirements (Three Amigos approach)
- Express requirements as executable specifications (Gherkin)
- Run local tests before sharing
Best Practices:
- Keep changes small and focused
- Commit frequently with descriptive messages
- Test locally before pushing
- Follow coding standards
Environment: DevBox (local development)
Stage 2: Pre-commit
Purpose: Validate changes before committing to ensure quality and standards compliance.
Key Activities:
- Code formatting verification
- SAST code quality issues
- Unit test execution
- Security scanning (secrets, vulnerabilities)
- Build verification
Time-box: 5-10 minutes. Longer checks create friction and get skipped.
Quality Gates:
| Check | Pass Criteria |
|---|---|
| Formatting | All files formatted per standards |
| SAST | No high-severity issues |
| Unit tests | 100% passing, minimum coverage met |
| Secrets scan | No hardcoded secrets detected |
| Build | Successful compilation |
Environment: DevBox (local) and Build Agents (CI validation)
Stage 3: Merge Request
Purpose: Submit changes for peer review and automated validation before integration.
Key Activities:
- Create pull request for peer review
- Automated CI checks run in parallel
- Peers review code for correctness, security, and design
- Address feedback and iterate
- Obtain required approvals
Quality Gates:
| Gate | Requirement |
|---|---|
| Peer approval | At least one approver |
| Automated tests | All tests passing |
| Code coverage | Meets threshold (e.g., 80%) |
| No conflicts | Branch up-to-date with target |
| Security scans | No critical vulnerabilities |
Variants: PRs (default), direct-to-trunk, merge queue. See Variants.
Environment: Build Agents
Stage 4: Commit
Purpose: Integrate validated changes into the main branch and trigger full validation.
Key Activities:
- Merge approved changes to trunk (squash merge)
- Trigger full build and test pipeline
- Generate versioned build artifacts
- Store artifacts with commit SHA for traceability
Automated Testing Triggered:
- L0: Unit tests
- L1: Component integration tests
- L2: Integration tests
- L3: System tests (if fast enough)
Traceability: Every commit links to requirements via semantic commit messages and PR references.
Environment: Build Agents
Stage 5: Acceptance Testing
Purpose: Validate that changes meet functional requirements in a production-like environment.
Key Activities:
- Deploy to PLTE (Production-Like Test Environment)
- Execute Installation Verification (IV)
- Execute Operational Verification (OV)
- Execute Performance Verification (PV)
- Generate compliance evidence
PLTE Characteristics:
- Same infrastructure as production
- Production-like configuration
- Realistic test data
- Isolated per branch (ephemeral)
Verification Types: See Compliance for IV/OV/PV details.

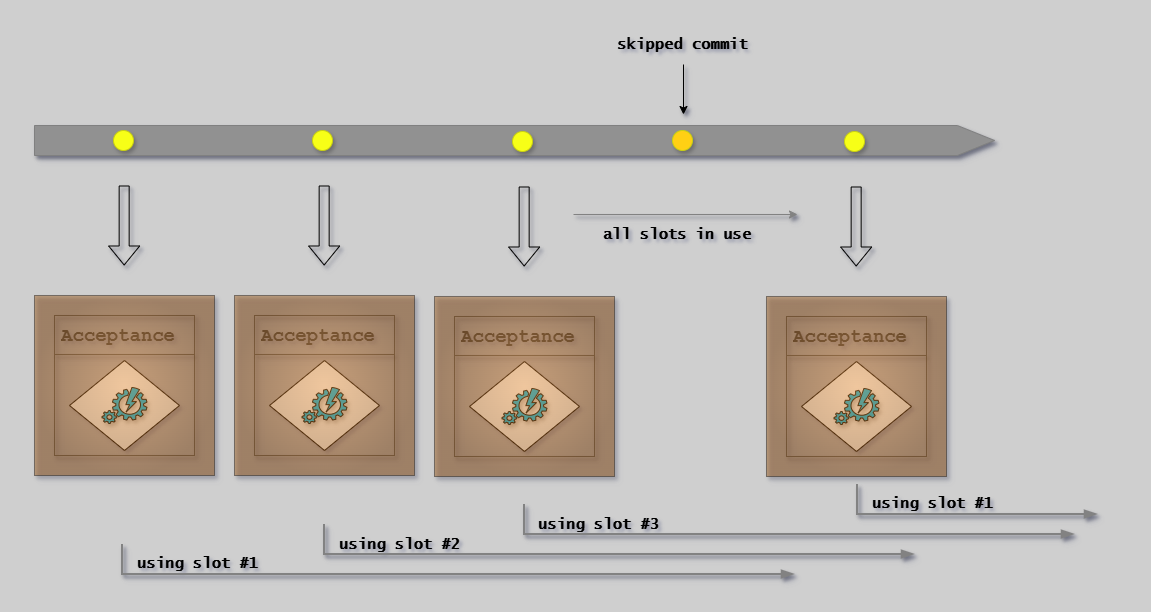

Scaling:

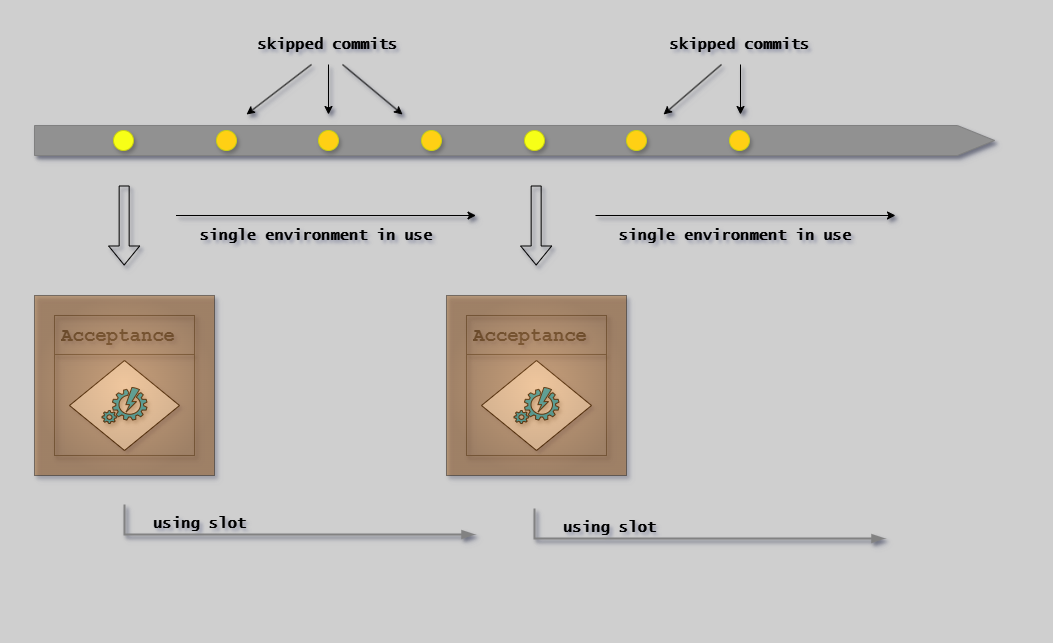

- Single module: One change in Stage 5 at a time
- Multiple modules: Parallel execution with isolated PLTEs
Environment: PLTE (ephemeral)
Stage 6: Extended Testing
Purpose: Perform comprehensive performance, security, and compliance validation.
Key Activities:
- Performance testing: Load, stress, endurance, spike tests
- Security testing: DAST (OWASP ZAP), penetration testing, API security
- Compliance validation: Regulatory controls, audit logging, data protection
- Cross-system integration: External service validation, error handling
Trigger: Periodic (not every commit) - picks up current HEAD for deeper analysis.
Quality Gates:
| Check | Threshold |
|---|---|
| Performance regression | < 5% |
| Security vulnerabilities | No critical/high |
| Compliance controls | All passing |
Environment: PLTE (longer-lived instances)
Stage 7: Exploration
Purpose: Enable stakeholder validation and exploratory testing before release.
Key Activities:
- Deploy to demo environment
- Stakeholder demos and feature validation
- Exploratory testing (session-based, test tours)
- User acceptance testing (UAT)
- Documentation and training validation
What Exploration Catches:
- Confusing user workflows
- Missing features or edge cases
- Visual/aesthetic concerns
- Business rule misinterpretations
Environment: Demo Environment (trunk-HEAD or release-HEAD)
Release Stages
Stages 8-12 cover release preparation through production operation, emphasizing controlled deployment and operational excellence.
Stage 8: Start Release
Purpose: Initiate the formal release process and prepare for production deployment.
Key Activities:

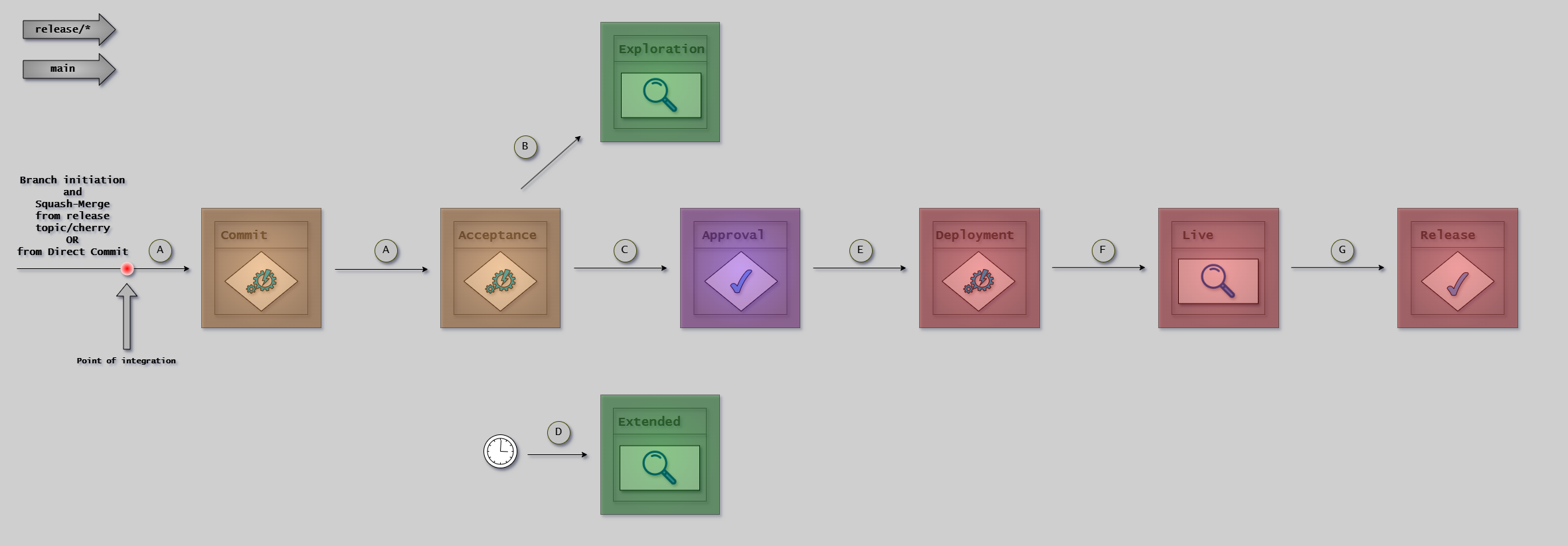

- Create release branch from main (e.g.,
release/v1.2.0) - Tag version using semantic versioning (MAJOR.MINOR.PATCH)
- Generate release notes (features, fixes, breaking changes)
- Freeze features (only critical fixes allowed)
Release Notes Include:
- New features and enhancements
- Bug fixes
- Breaking changes requiring user action
- Security fixes
- Known issues
Environment: Build Agents
Stage 9: Release Approval
Purpose: Obtain formal approval for production deployment.
Approval Criteria:
| Category | Requirements |
|---|---|
| Quality | All tests passing, coverage met, no critical bugs |
| Security | Scans pass, no critical/high vulnerabilities |
| Compliance | Documentation complete, sign-offs obtained |
| Business | Release notes finalized, support trained, rollback plan ready |

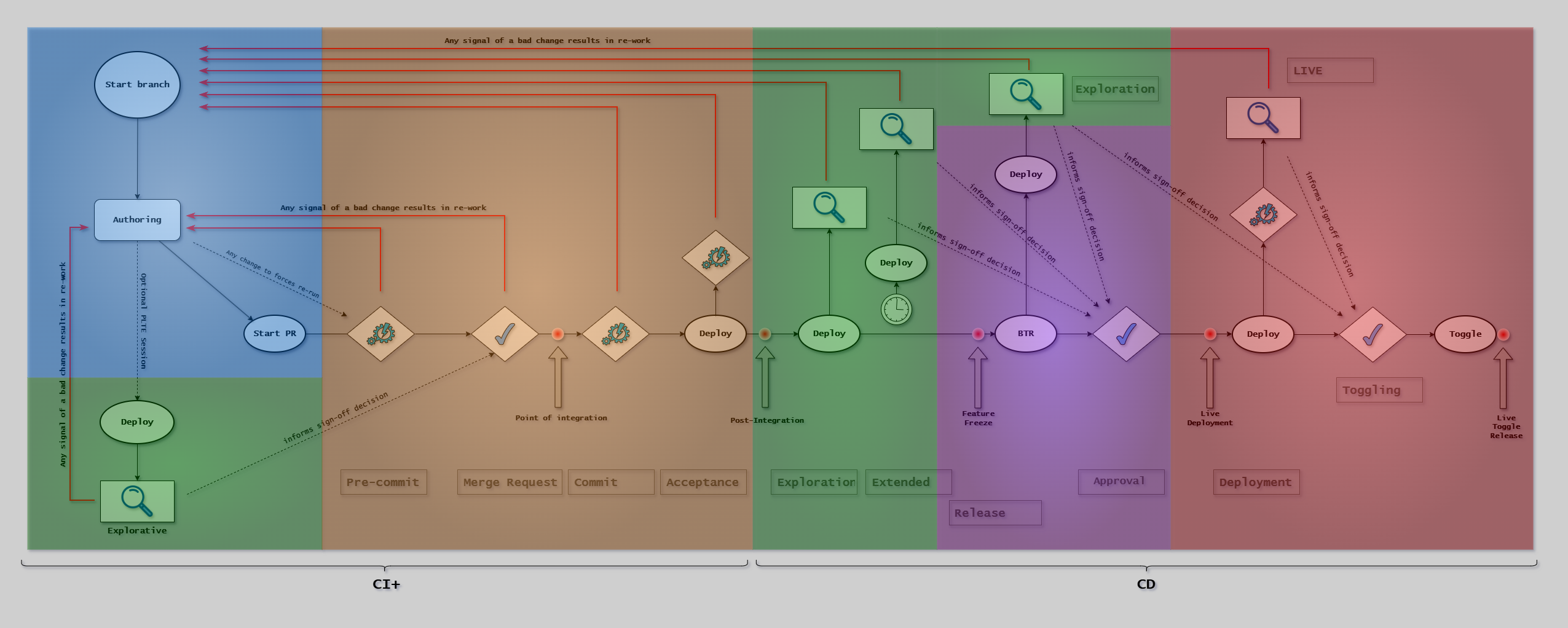

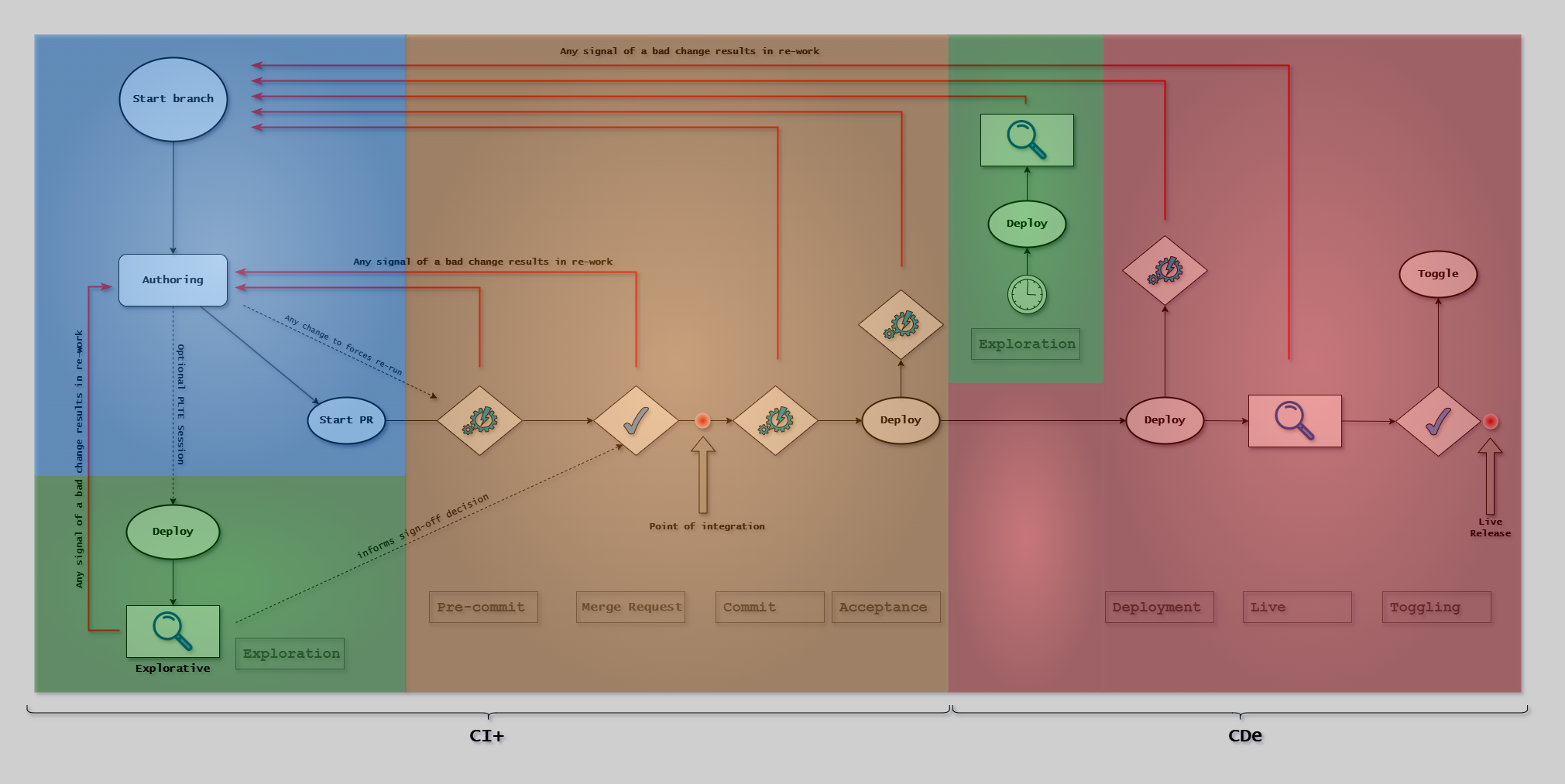

Variants:
| Pattern | Approver | Mechanism |
|---|---|---|
| RA (Release Approval) | Release manager | Manual review and sign-off |
| CDe (Continuous Deployment) | Quality gates | Auto-approve if all gates pass |
See Variants for detailed comparison.
Environment: PLTE (evidence) + Demo (exploratory validation)
Stage 10: Production Deployment
Purpose: Deploy the approved release to production with appropriate controls.
Deployment Strategies:
| Strategy | Characteristic |
|---|---|
| Hot Deploy | Fastest, brief downtime |
| Rolling | Zero downtime, gradual |
| Blue-Green | Instant rollback, 2x infrastructure cost |
| Canary | Metrics-driven, 1-5% initial |
| Rings | User-segment phased rollout |
See Deployment Strategies for detailed guidance.
Rollback Planning:
- Define automated rollback triggers (error rate, latency)
- Document rollback procedures
- Target rollback time < 5 minutes
- Practice regularly
Environment: Production (via Deploy Agents with segregated access)
Stage 11: Live
Purpose: Monitor and validate the release in production.
Monitoring Categories:
| Category | Examples |
|---|---|
| Infrastructure | CPU, memory, disk, network, container health |
| Application | Request rates, response times, error rates |
| Business | Conversion rates, transaction volumes, engagement |
Alert Thresholds:
| Metric | Threshold | Action |
|---|---|---|
| Error rate | < 0.1% | Alert if exceeded |
| P95 latency | < 200ms | Alert if exceeded |
| CPU utilization | < 70% sustained | Alert |
Incident Response:
- Detect (monitoring/user reports)
- Triage (assess severity)
- Respond (rollback, hotfix, mitigate)
- Communicate (status page, notifications)
- Resolve (fix root cause)
- Post-mortem (learn and prevent)
Environment: Production
Stage 12: Release Toggling
Purpose: Control feature availability using feature flags (optional).
When to Use Feature Flags:
- Large features (deploy incrementally)
- Experimental features (test with subset of users)
- Risky changes (quick rollback without redeployment)
- Phased rollouts (1% → 10% → 50% → 100%)
- Business events (activate at specific times)
Flag Types:
| Type | Example |
|---|---|
| Boolean | new-search: true |
| Percentage | rollout_percentage: 25 |
| User-targeted | enabled_for_groups: ["beta-testers"] |
| Time-based | enabled_after: "2024-11-29T00:00:00Z" |
Flag Lifecycle:
- Create: Deploy feature with flag OFF
- Enable: Gradually roll out to users
- Stabilize: Monitor and iterate
- Remove: Delete flag after 30-90 days (treat as tech debt)
Environment: Production (runtime control)
Summary
| Stage | Purpose | Environment | Duration |
|---|---|---|---|
| 1. Authoring | Create changes | DevBox | hours-days |
| 2. Pre-commit | Local validation | DevBox/Agents | 5-10 min |
| 3. Merge Request | Peer review + CI | Build Agents | hours |
| 4. Commit | Integration | Build Agents | 5-10 min |
| 5. Acceptance | Functional validation | PLTE | minutes-1 hour |
| 6. Extended | Deep validation | PLTE | hours |
| 7. Exploration | Stakeholder validation | Demo | continuous |
| 8. Start Release | Prepare release | Build Agents | minutes |
| 9. Approval | Formal approval | PLTE/Demo | hours-days (RA) |
| 10. Deployment | Deploy to prod | Production | minutes |
| 11. Live | Monitor prod | Production | ongoing |
| 12. Toggling | Feature control | Production | as needed |
References
- Overview - CD Model introduction
- Visual Notation - How to read diagrams
- Principles - Core philosophy
- Variants - RA vs CDe patterns
- Compliance - Evidence and signoffs
- Environments - Environment types
- Testing Strategy - Test levels
