Visual Notation

The CD Model uses specific visual elements to represent different concepts.

Understanding these symbols is essential for reading the model diagrams.

The following diagram provides a comprehensive reference for all visual elements used in EAC documentation, including stages, gates, environments, and test level indicators.

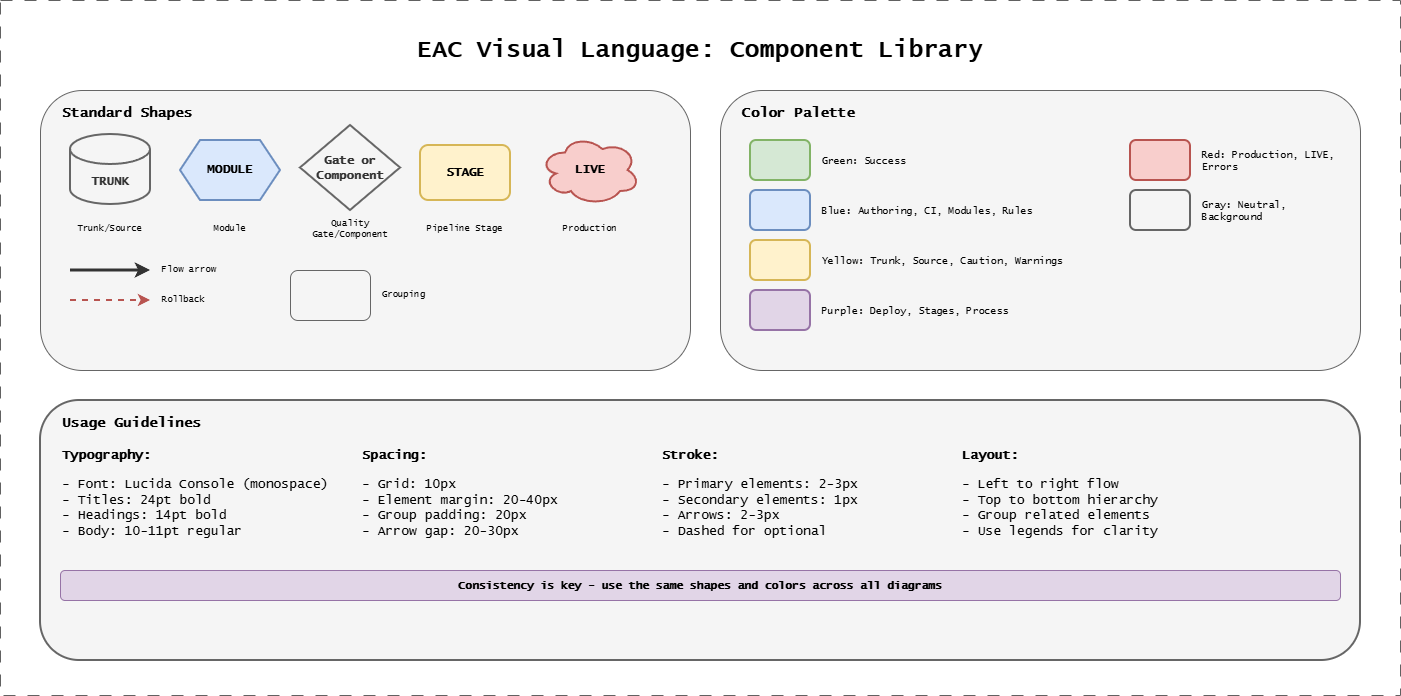

EAC Visual Language Reference


Start Elements

Start Elements

Start elements indicate entry points into the CD Model workflow.

These represent where work begins, typically when an engineer starts authoring changes on a local topic branch.

Automated Quality Gates

Automated Quality Gates

Automated quality gates are checkpoints that validate specific criteria before allowing progression to the next stage.

Examples:

  • Tests passing
  • Code quality standards (formatting, repository layout)
  • Test coverage thresholds
  • Security scan results
  • Performance benchmarks
  • Automated approvals based on quality metrics

If quality gates fail, the pipeline stops, preventing defects from progressing further.

Signoff Points

Signoff Points

Signoff points represent formal approvals required at critical stages.

Types:

  • Manual approvals from stakeholders or release managers
  • Compliance artifact sign-offs
  • Security review approvals
  • Peer approval in the merge request

See Compliance for detailed signoff gate descriptions.

Exploration Activities

Exploration Activities

Exploration activities represent human-driven validation that complements automated testing.

Examples:

  • Exploratory testing
  • User acceptance testing (UAT)
  • Stakeholder demos and feedback
  • Manual verification of edge cases

Execution Hosts

Execution Hosts

Execution hosts are where automation is executed:

Host Description
DevBox Local development environment
Build Agents CI/CD pipeline runners
Deploy Agents Specialized runners with production network access

Production-Like Test Environments (PLTE)

PLTE Environments

PLTEs are isolated environments that emulate production characteristics, optimally ephemeral.

When the underlying infrastructure (such as PaaS/VM) doesn't support truly ephemeral environments, approximate ephemeral behavior by resetting dedicated slots between uses.

Connectivity note: A PLTE can be horizontally connected with other live systems, but such an environment cannot support automated testing in L3.

Horizontally connected PLTEs should only facilitate Exploration Activities - or specialized and human observed Extended Testing, as these systems are extremely fragile and can't support real deterministic testing.

PLTEs enable:

  • Realistic testing without production risk
  • Parallel testing for multiple topic branches
  • Production IaC validation
  • Performance and security testing in production-like conditions

Test Level Icons

Test levels are represented using color-coded ovals that indicate the execution environment and scope:

L0-L1: Unit/Component Tests

L0-L1 Test Level

Blue ovals representing fast, in-process unit and component tests.

L2: Emulated System Tests

L2 Test Level

Yellow oval representing integration-level emulated system testing.

L3: In-Situ Vertical Tests

L3 Test Level

Orange oval representing in-situ vertical testing in PLTE environments.

L4: Production Tests

L4 Test Level

Red oval representing production testing and live verification.

HE2E: Horizontal E2E (Anti-Pattern)

HE2E Anti-Pattern

Green rounded rectangle identifying shared pre-production anti-pattern.


References


Tutorials | How-to Guides | Explanation | Reference

You are here: Explanation — understanding-oriented discussion that clarifies concepts.
