Compliance and Evidence

Home › Explanation › Continuous Delivery › Cd Model › Compliance

This article consolidates compliance concepts used throughout the CD Model, including verification types, evidence generation, signoff gates, and audit trail requirements.

Verification Types

The CD Model uses three verification types to validate software readiness, primarily collected during Stage 5 (Acceptance Testing).

Installation Verification (IV)

Confirms the solution can be installed and configured correctly in the target environment.

What IV validates:

  • Deployment scripts execute without errors
  • Dependencies are satisfied and compatible
  • Configuration files are correctly applied
  • Database migrations complete successfully
  • Services start and respond to health checks

Evidence generated:

  • Deployment logs
  • Configuration validation reports
  • Dependency audit results
  • Health check responses

Operational Verification (OV)

Ensures the solution operates as intended under normal conditions.

What OV validates:

  • Functional requirements are met
  • User workflows complete successfully
  • Integration points function correctly
  • Business rules are enforced
  • Error handling works as expected

Evidence generated:

  • Functional test results (unit, integration, system)
  • API test reports
  • User workflow validation logs
  • Integration test results

Performance Verification (PV)

Validates that performance benchmarks are met under expected load.

What PV validates:

  • Response times meet SLAs
  • Throughput handles expected load
  • Resource utilization stays within limits
  • System scales appropriately
  • No memory leaks or degradation over time

Evidence generated:

  • Load test results (p50, p95, p99 latencies)
  • Throughput measurements
  • Resource utilization metrics (CPU, memory, disk, network)
  • Scalability test reports

Evidence Generation

Evidence is automatically generated and stored throughout the pipeline, linked to specific builds for traceability.

Automated Evidence Collection

Stage Evidence Type Storage
Stage 2 (Pre-commit) Lint reports, unit test results, security scans Build artifacts
Stage 3 (Merge Request) Code review approvals, CI check results VCS + Build artifacts
Stage 5 (Acceptance) IV/OV/PV reports, screenshots, API logs Artifact repository
Stage 6 (Extended) Performance reports, security scan results Artifact repository
Stage 9 (Approval) Approval records, quality metrics snapshot Compliance system
Stage 11 (Live) Monitoring dashboards, incident reports Observability platform

Evidence Linking

Every piece of evidence is linked to:

  • Commit SHA: The exact code version tested
  • Build ID: The specific build artifact
  • Release version: The release candidate (if applicable)
  • Requirement IDs: Traced back to specifications

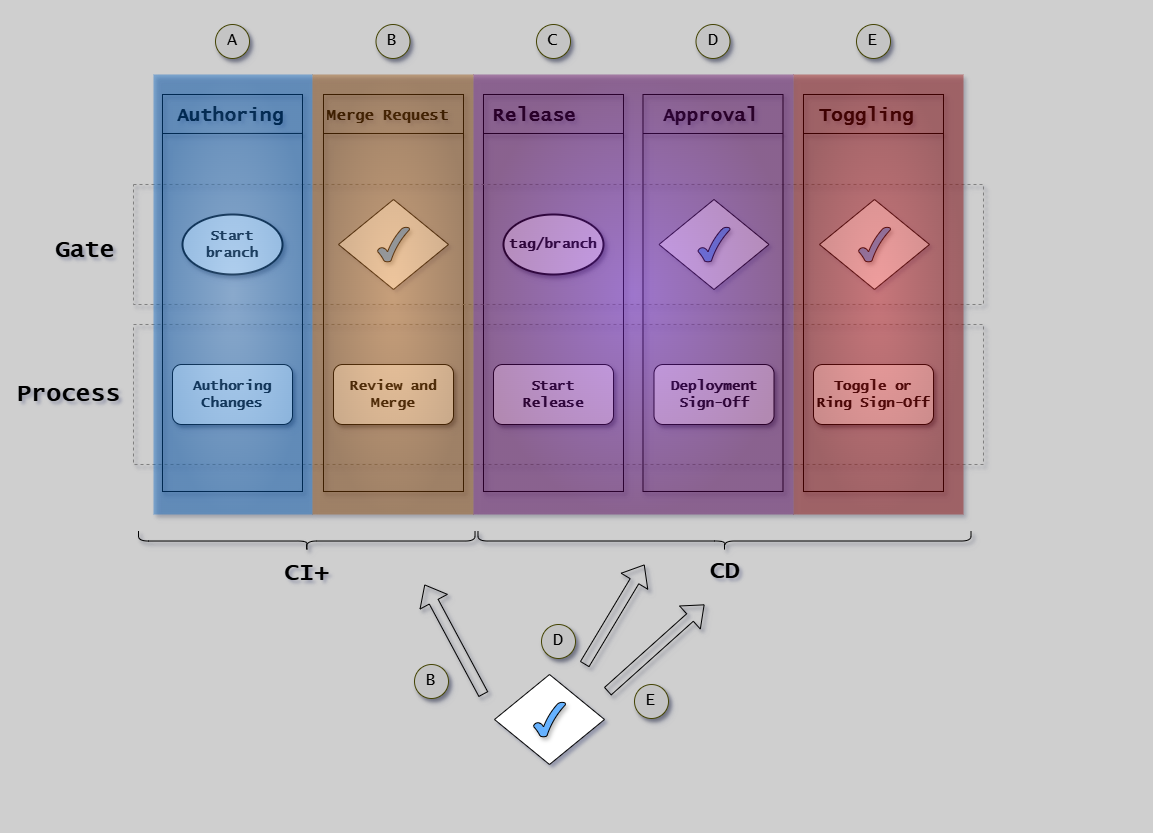

Signoff Gates

The CD Model includes formal signoff points where human or automated approval is required.

Stage 3: Peer Review (First-Level)

Purpose: Validate code quality and design before integration.

Approver: Peer developer(s)

What's reviewed:

  • Code correctness and logic
  • Readability and maintainability
  • Test coverage
  • Security implications
  • Alignment with architecture

Evidence: PR approval records, review comments, CI check results

Stage 9: Release Approval (Second-Level)

Purpose: Validate production readiness before deployment.

Pattern Approver Mechanism
RA (Release Approval) Release manager or approval board Manual review and sign-off
CDe (Continuous Deployment) Automated quality gates All gates pass → auto-approve

What's validated:

  • All tests passing (100%)
  • Code coverage meets threshold
  • No critical/high vulnerabilities
  • Performance benchmarks met
  • Required documentation complete

Evidence: Quality metrics snapshot, approval records, release notes

Stage 12: Feature Toggle (Third-Level)

Purpose: Control feature exposure to end users.

Approver: Feature owner or product manager

What's decided:

  • When to enable features
  • Rollout percentage (gradual: 1% → 10% → 50% → 100%)
  • Kill switch activation if issues arise

Evidence: Feature flag configuration history, rollout logs

Audit Trail Requirements

Requirements Traceability

Every production change must trace back to its origin:

Requirement/User Story
    ↓
Acceptance Criteria (Gherkin specs)
    ↓
Test Cases (automated)
    ↓
Code Changes (commits)
    ↓
Build Artifacts
    ↓
Deployment Records

Change Traceability

For each change, the audit trail captures:

Question Evidence
Who made the change? Commit author, PR creator
Who reviewed it? PR approvers, release approver
When was it made? Commit timestamps, approval timestamps
Why was it made? Linked requirement, PR description
What was changed? Diff, affected files
How was it validated? Test results, scan reports

Retention Requirements

Evidence must be retained according to organizational and regulatory requirements:

  • Minimum: Duration of software's production lifecycle
  • Regulatory: As specified by applicable regulations (FDA, SOX, etc.)
  • Recommended: At least 3-5 years for audit purposes

Compliance Artifact Management

RA Pattern (Manual Oversight)

  • Artifacts reviewed and approved manually before release
  • Stored in designated compliance systems (e.g., regulatory document management)
  • Formal approval documented with signatures/timestamps
  • Audit trail emphasized throughout

CDe Pattern (Automated)

  • Artifacts generated automatically at each stage
  • Stored in artifact repositories (linked to builds)
  • Compliance validation automated where possible
  • Evidence available for retrospective audit

Both patterns generate the same evidence types; the difference is in approval workflow and oversight level.
